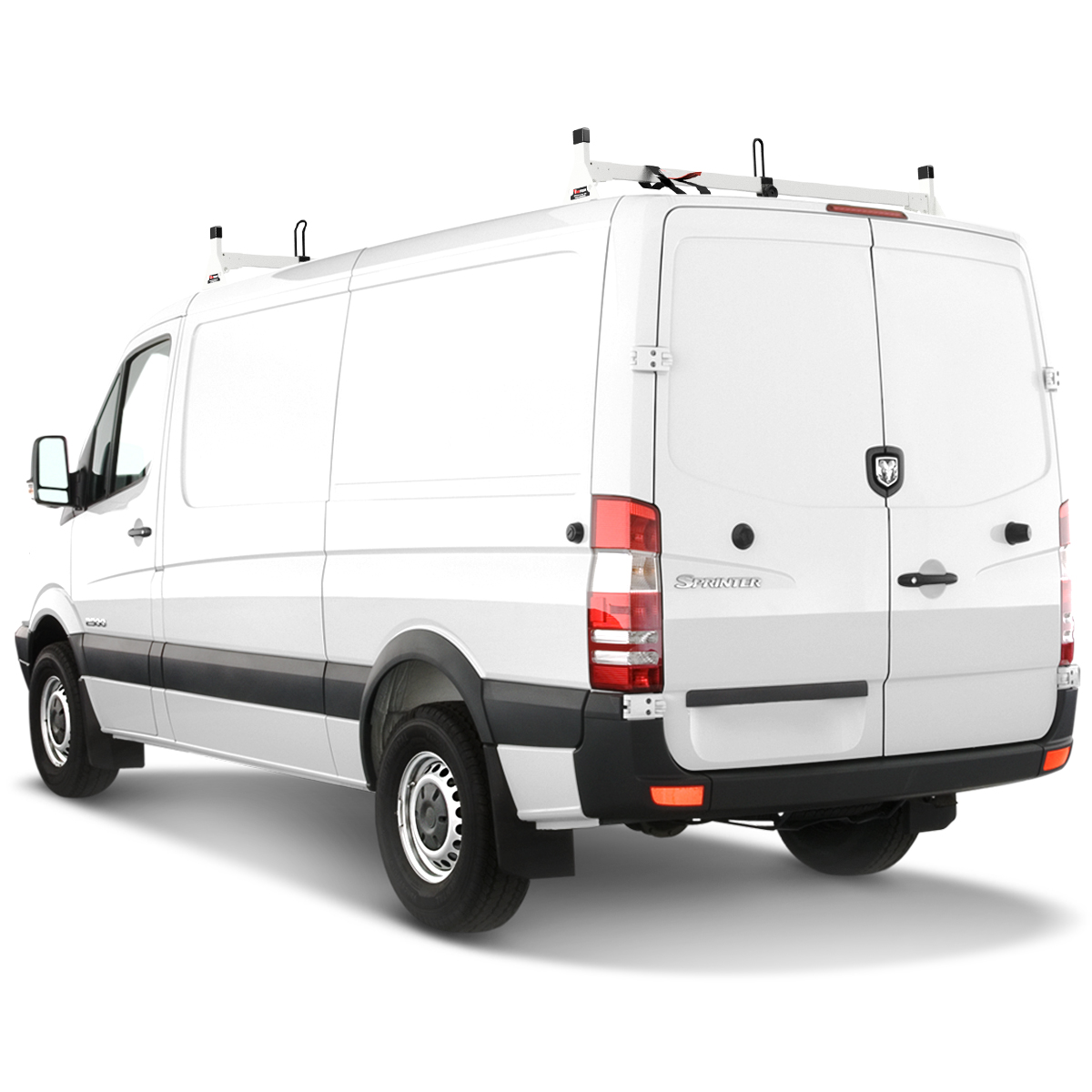

H1 Ladder Roof Rack For 07-On Sprinter Low Roof (144 WB)

H1 Ladder Roof Rack For 07-On Sprinter Low Roof (144 WB)

SKU
:

H2641W

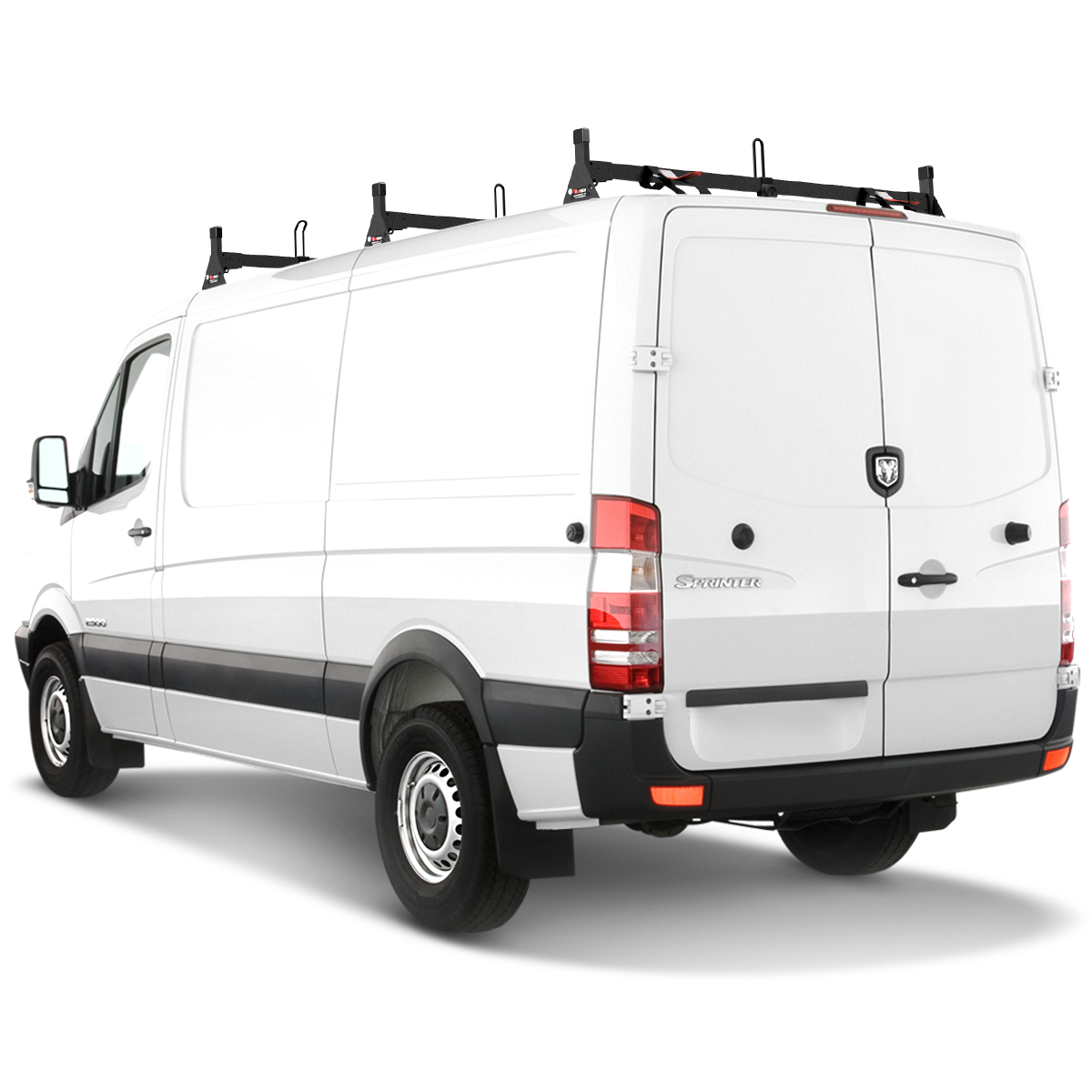

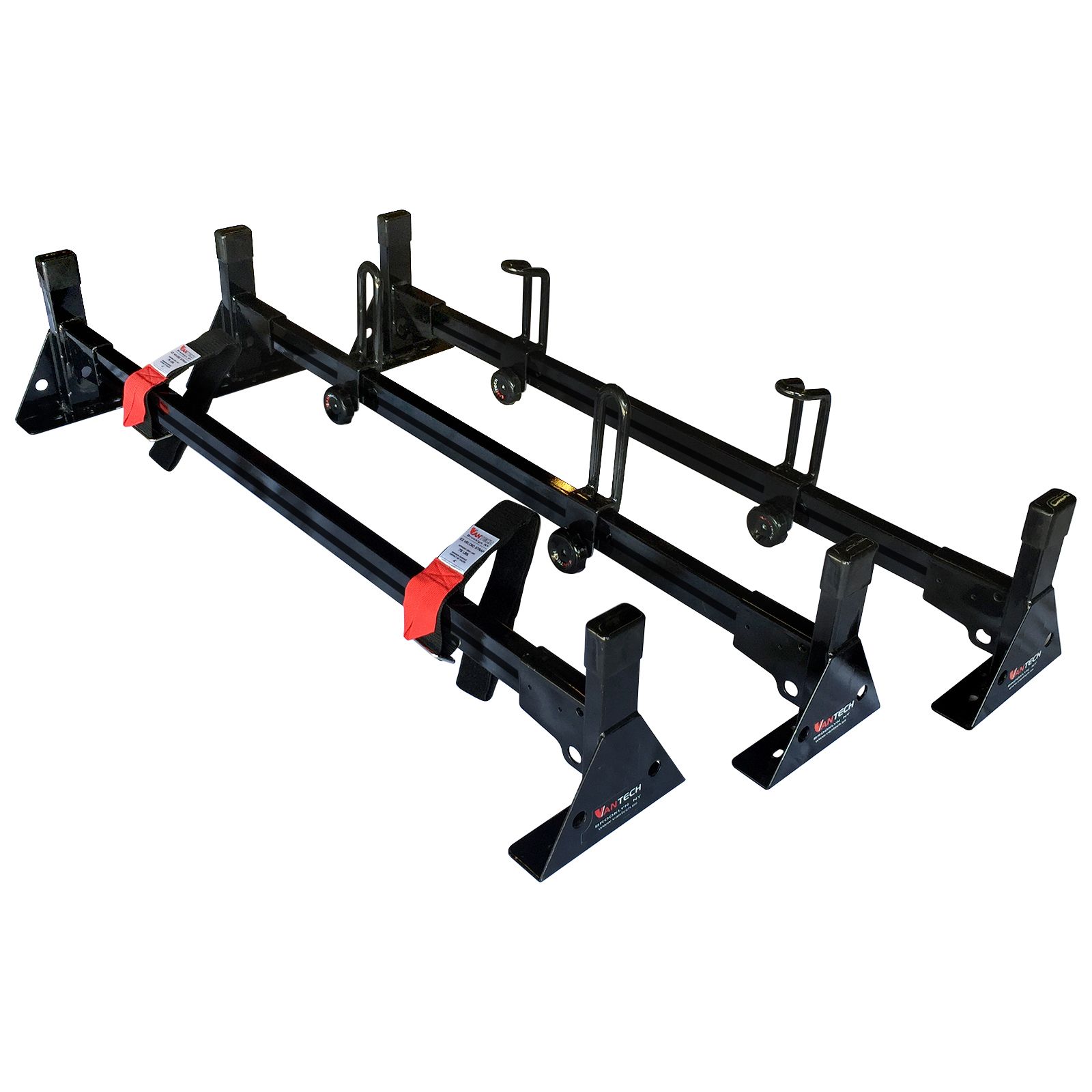

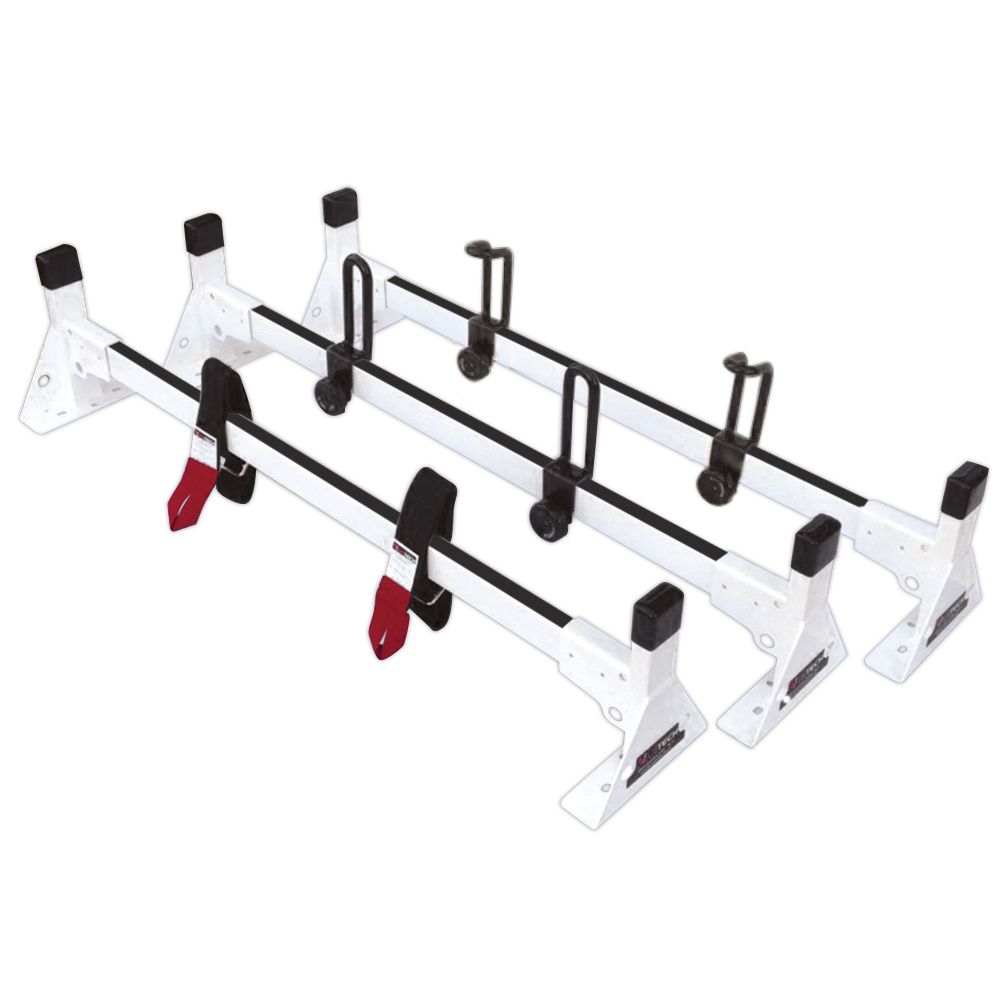

Our H1 Rack System offers a fast, simple, and rugged solution to your cargo needs. Designed to mount directly onto OEM mounting points, you don’t need to worry about drilling new holes or fitment issues. The H1 fits all wheelbases, and transforms any roof into a loading area. Our 10” low-profile mounting bases ensure minimal wind noise, while providing enough clearance for most roof-cargo. Included with the H1 is a ladder guide and stopper to ensure proper ladder and cargo retention. The H1 system comes in a variety of configurations to fit your needs; it is available in a set of 2 or 3 bars, steel or aluminum, and in black or white. Each cross bar has a load capacity of 250 lbs. (evenly distributed). We also offer a cargo roller bundle to help save your back, roof line and your time!



Please Select material
Aluminum
Steel
Please Select system
2 Bar System
3 Bar System
3 Bar System w/ Roller
Please Select Color
Black
White
Price Per Item
$459.00
Have a Dealer account? Access Vantech b2b >
About H1 Ladder Roof Rack For 07-On Sprinter Low Roof (144 WB)

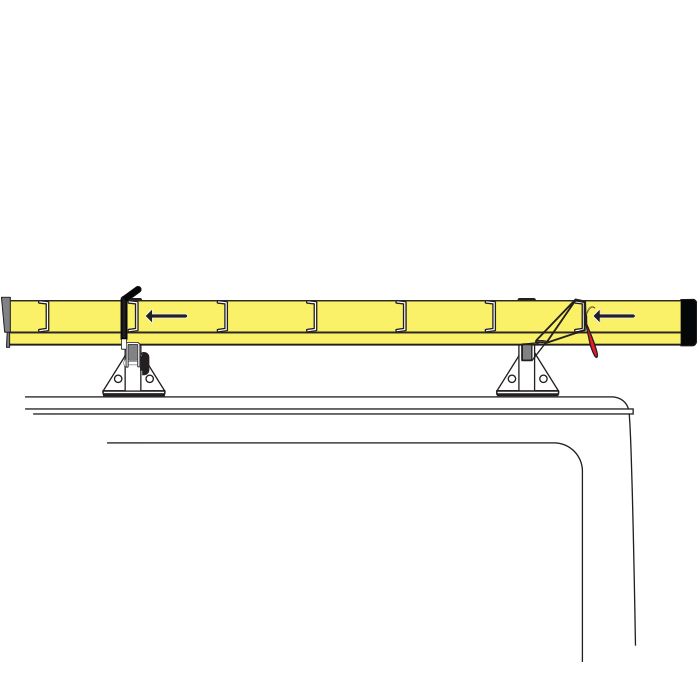

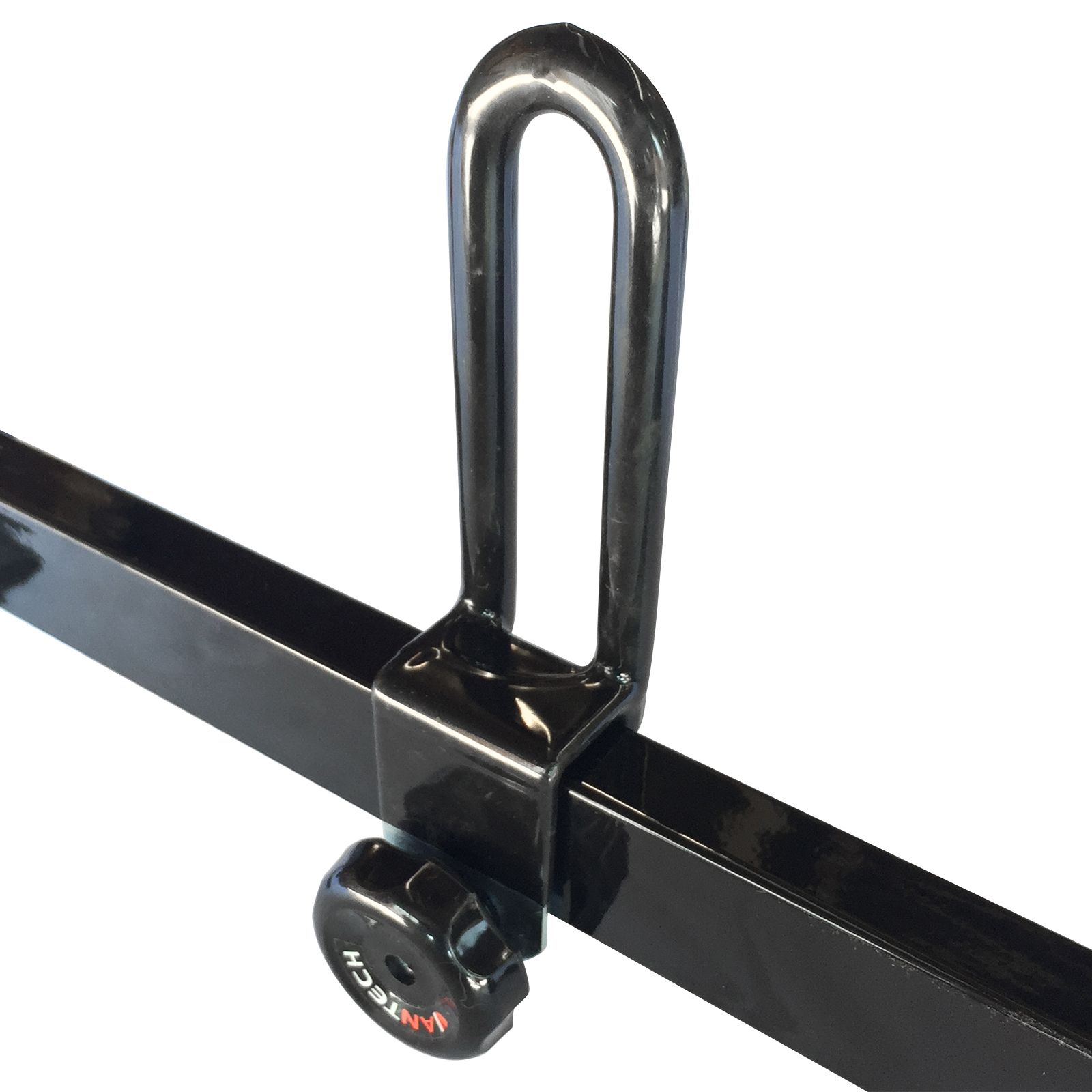

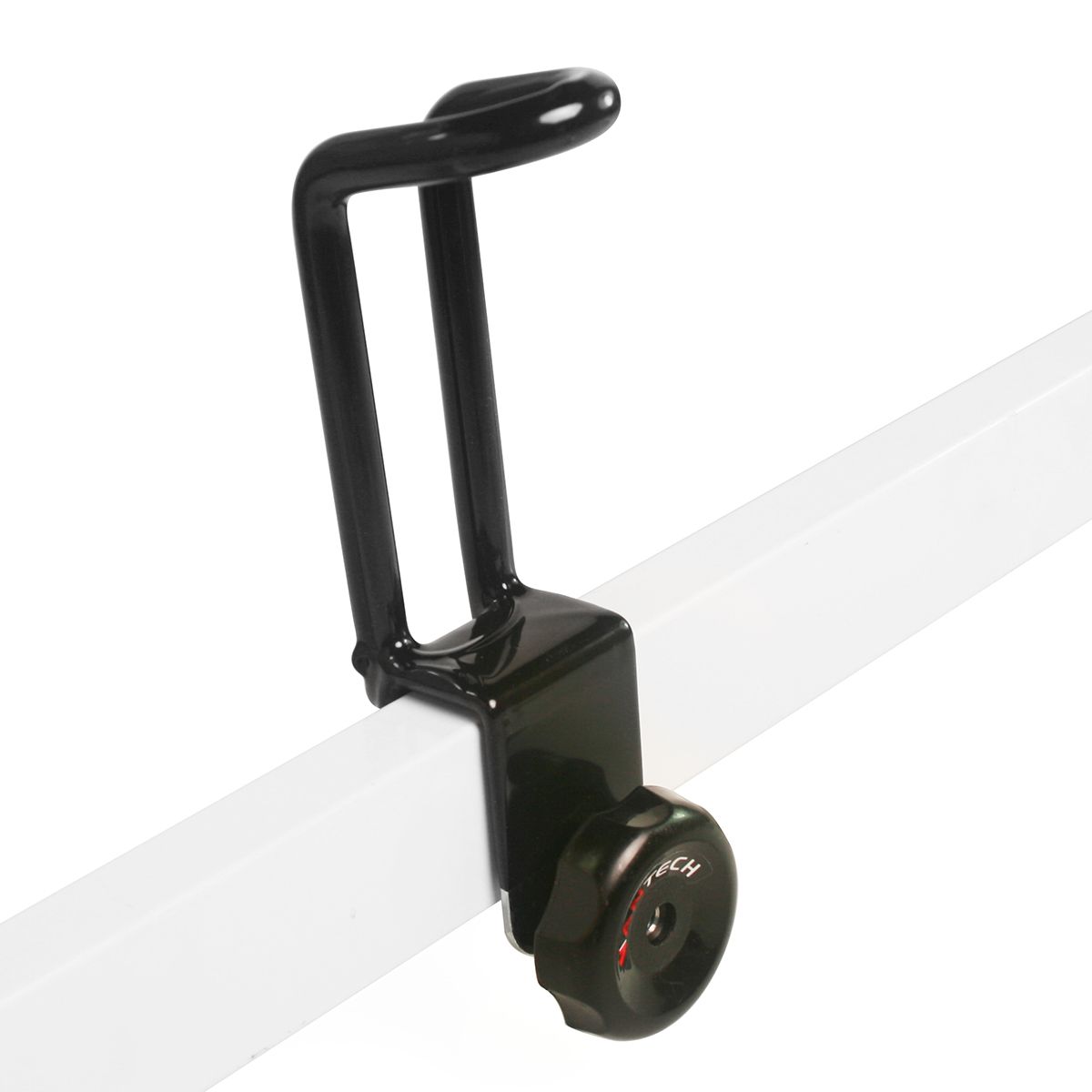

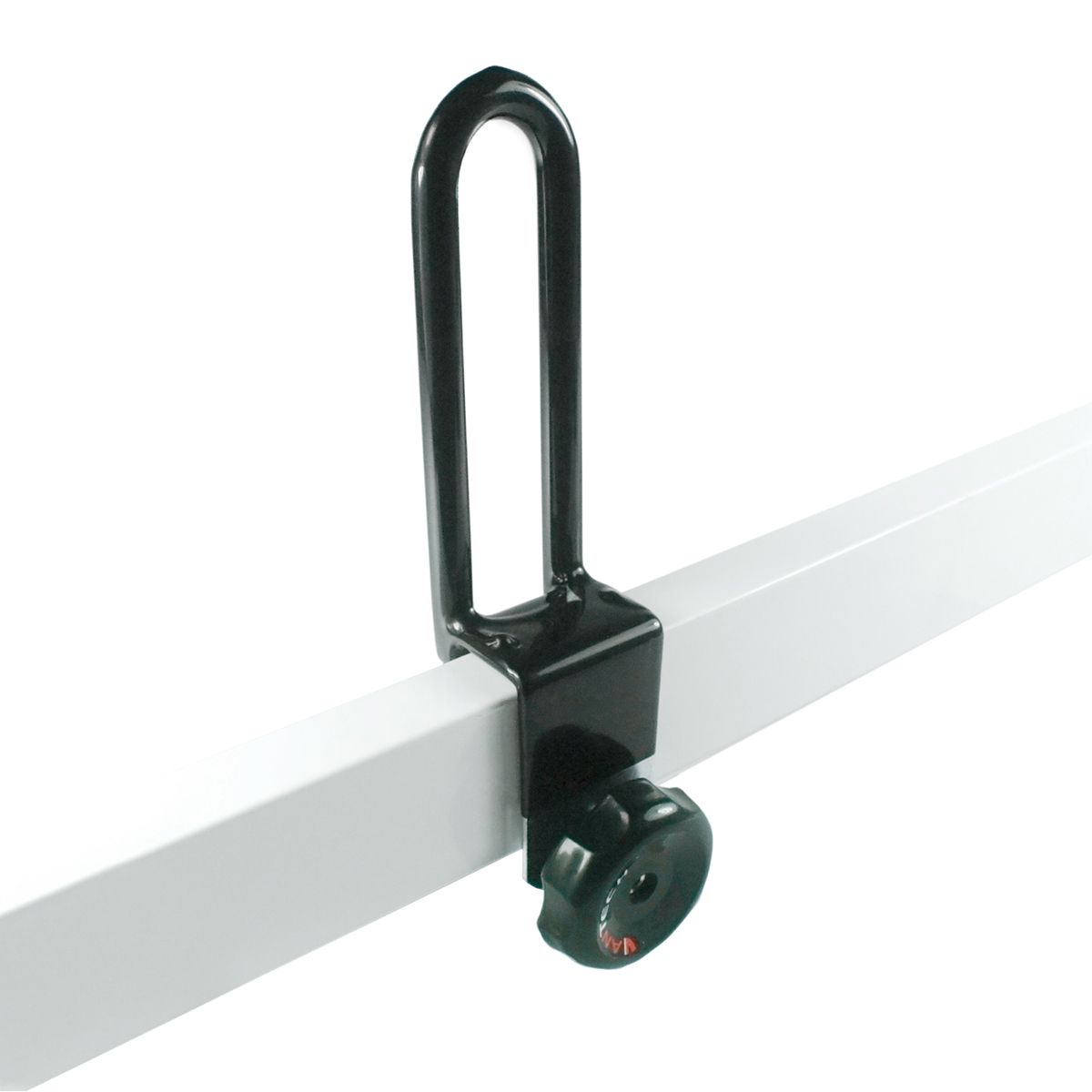

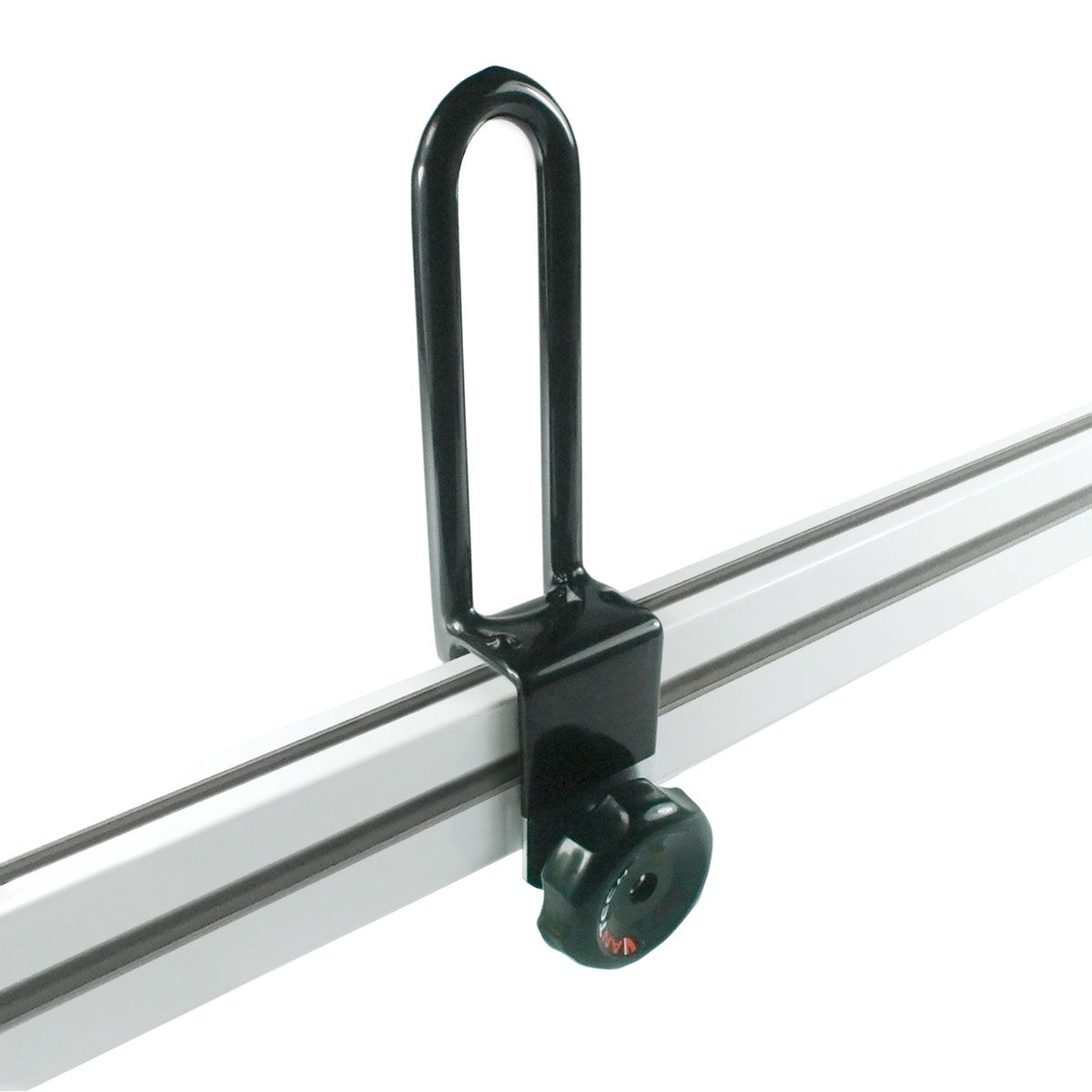

The Vantech H1 aluminum 2 bar system can hold up 500 lbs. The Crossbars is 2" X 1" reinforced extruded aluminum with built-in channels. The aluminum mounting upright is approx. 1/8" thick at the base. The mounting uprights are 8in wide at the base and 10.25" total height. The Base is welded complete onto the upright post for complete seal. There are 4 x 3/4" eyehook per mounting upright There is absolutely No drilling required. Rubber cap on the upright post prevents wind noise and water leakage. The system Includes 5" ladder stopper to prevent ladder from sliding forward, Ladder stoppers are galvanized and rubber dipped. The system also includes 5.5" ladder guide for easy bungee and tie-down. Ladder guide are galvanized and rubber dipped. Easy turn knob allows quick adjustments and removal of ladder stopper and ladder guide. Hook & loop straps secure ladders within seconds up to 75 lbs.
4x Mounting Bases
2x A613 Crossbars

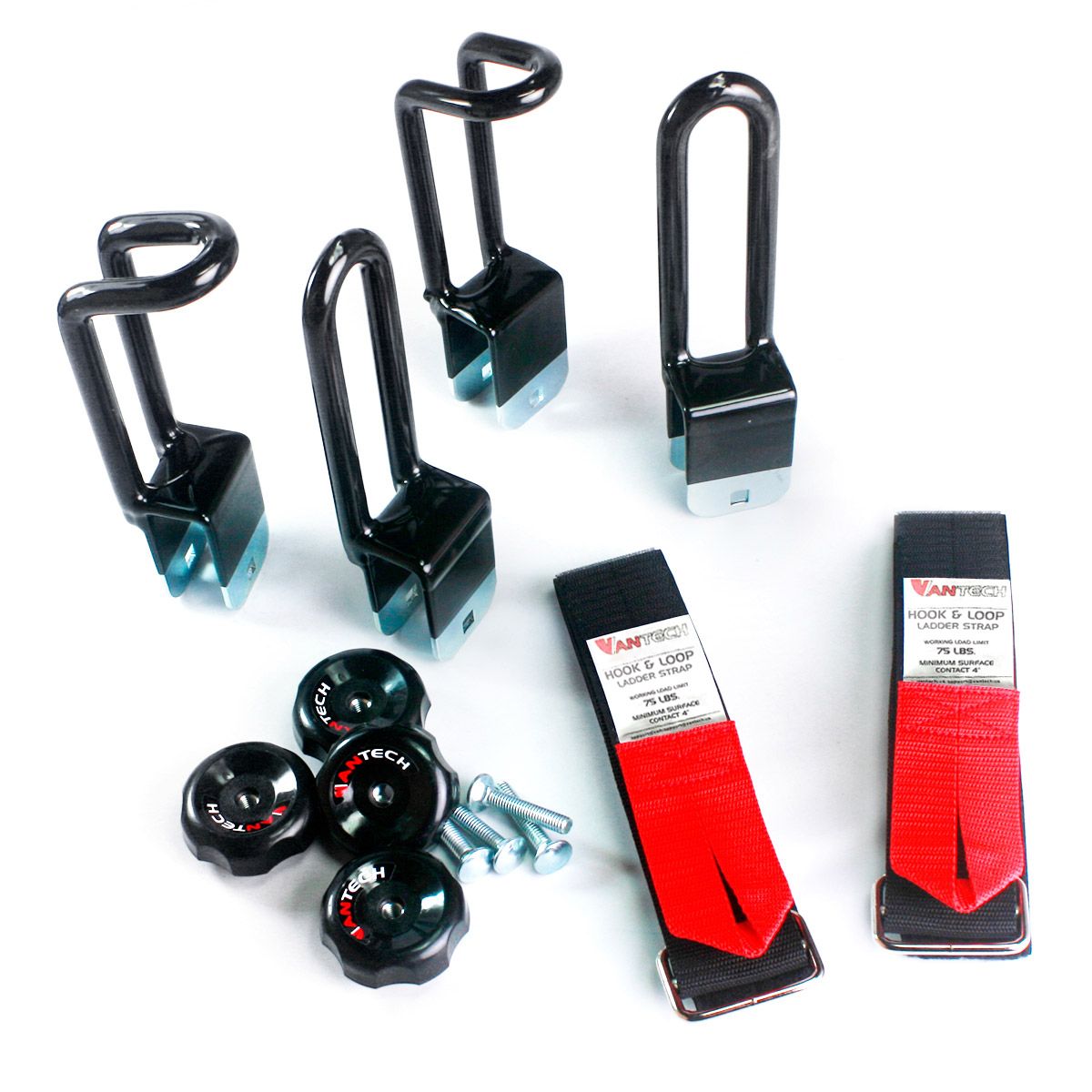

1x A06 Ladder Stopper
1x A02 Ladder Guide

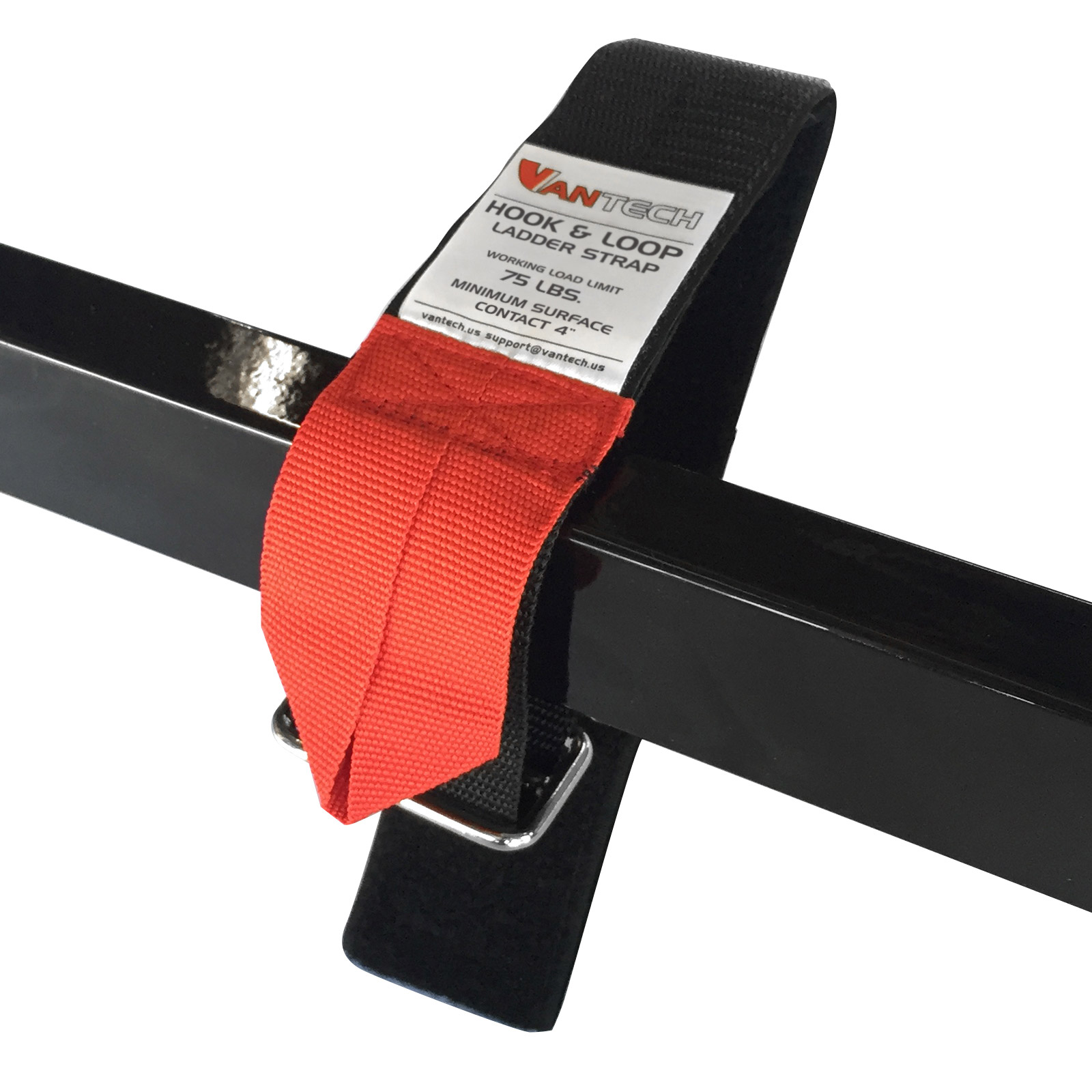

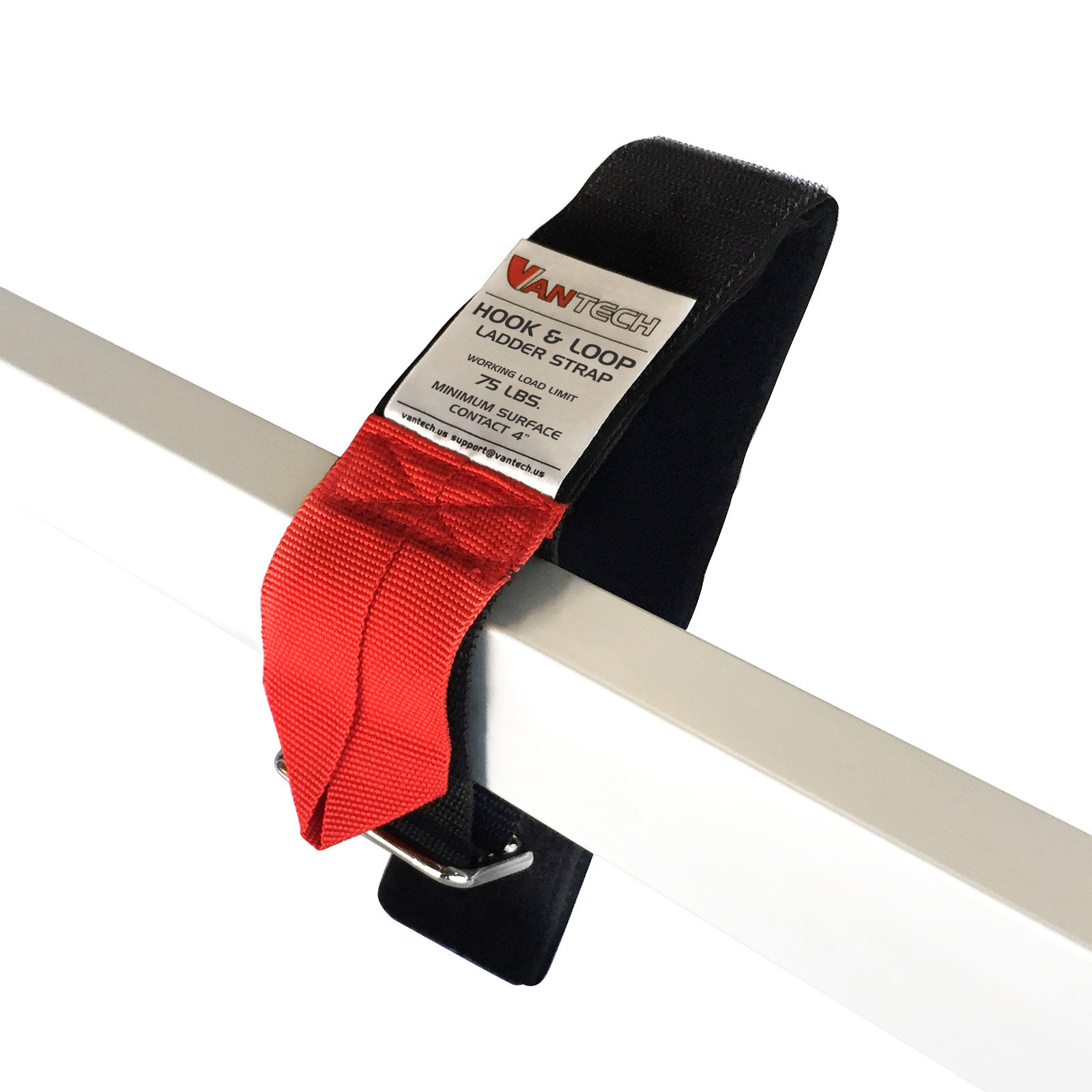

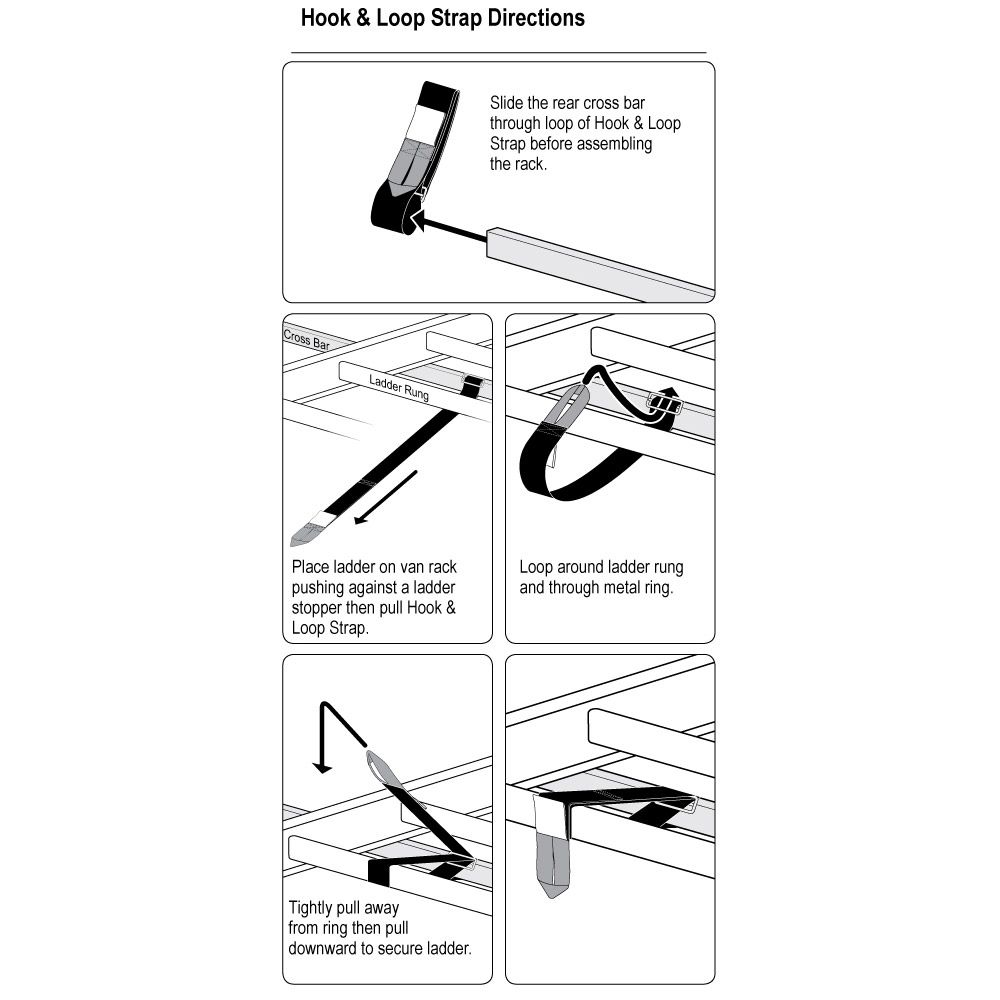

1x A69 Hook & Loop strap
2x Bar Guards
Hardware kit
Load capacity 500 lbs. (evenly distributed)
Aluminum systems are powder coated for extra protection. Fitted for the Mercedes Sprinter low roof, the system fastens onto existing factory track (if provided). **Tracks required (SKU: R20, R21 or R30).
