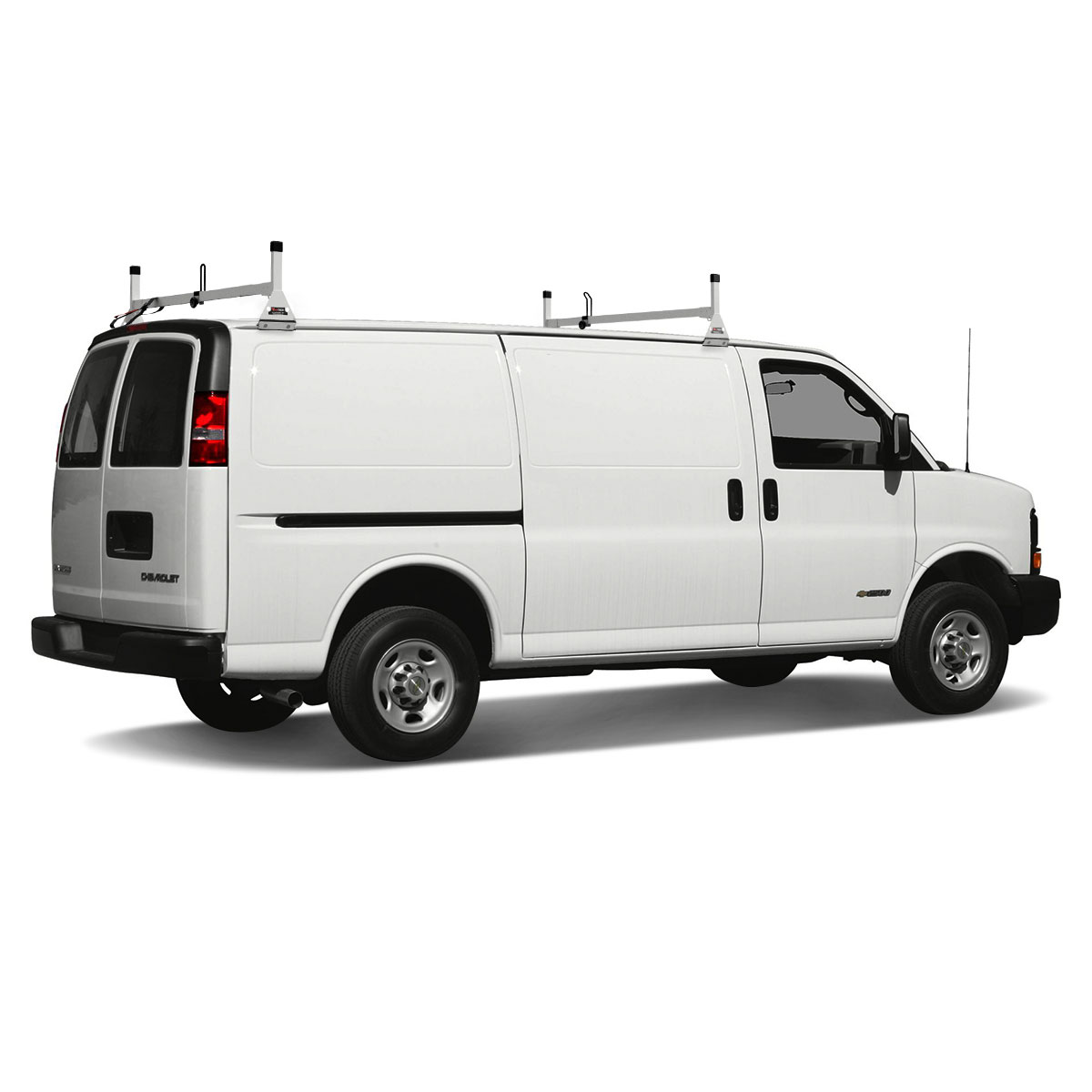

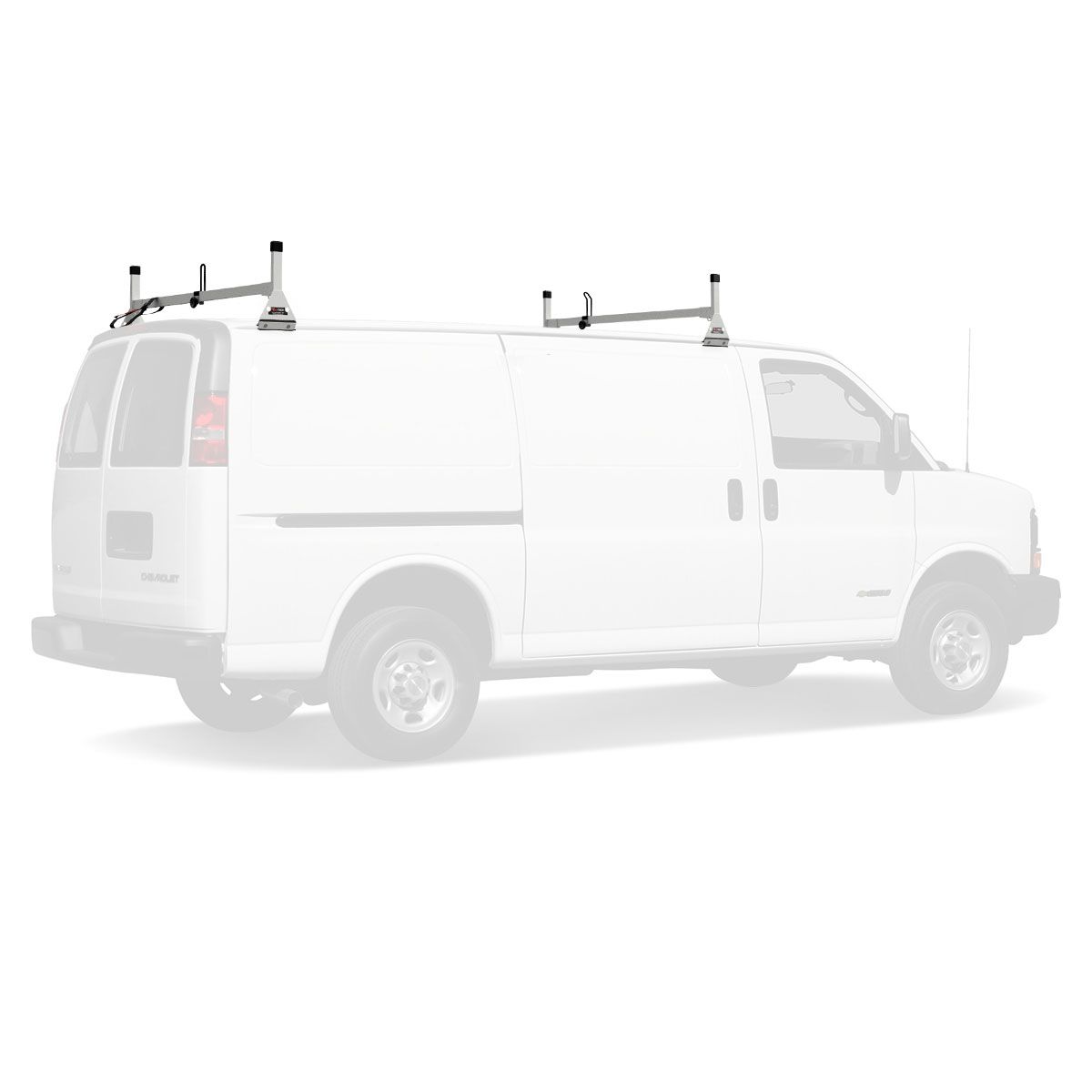

H1 Ladder Rack System for GMC Savana 1996-On

H1 Ladder Rack System for GMC Savana 1996-On

SKU
:

H3052W

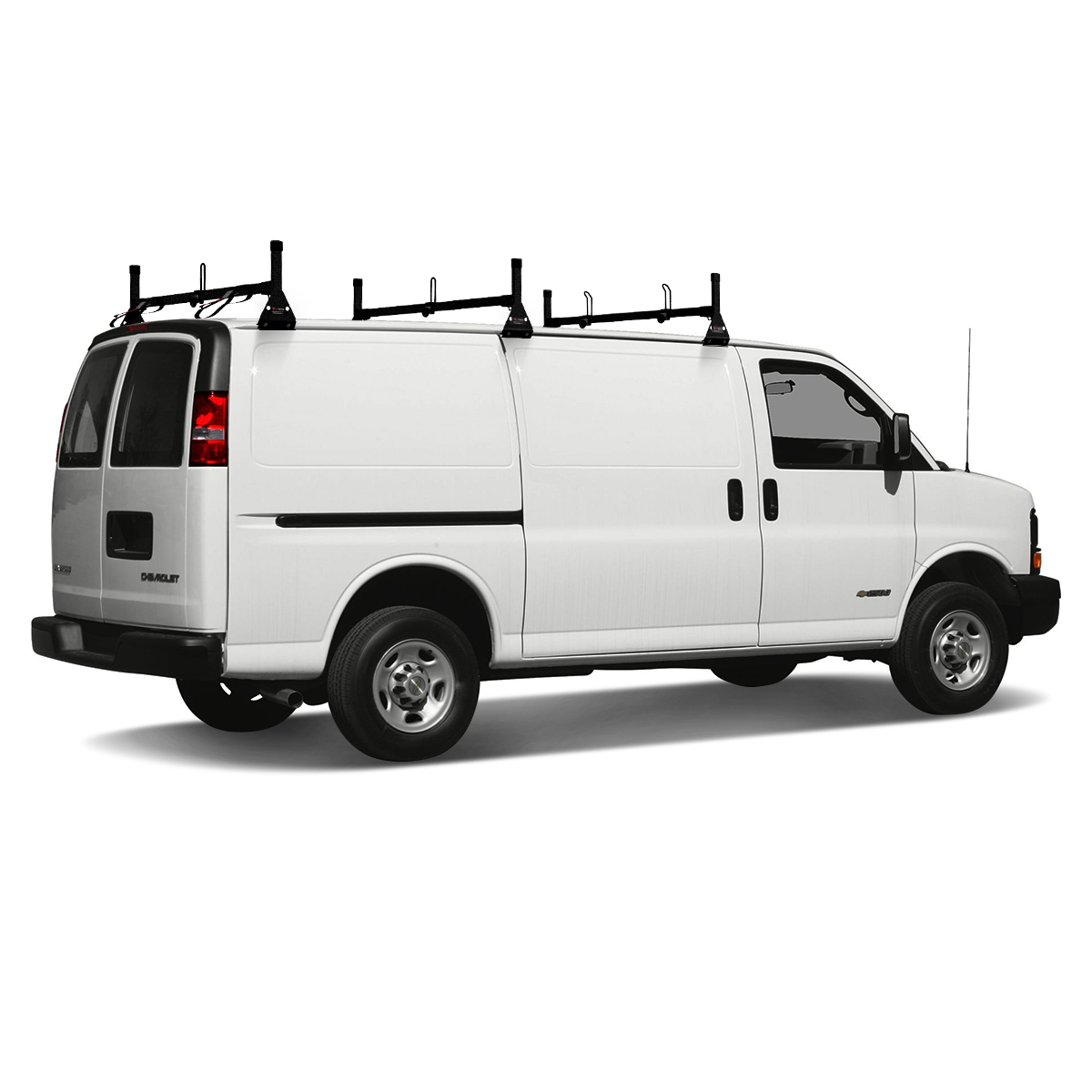

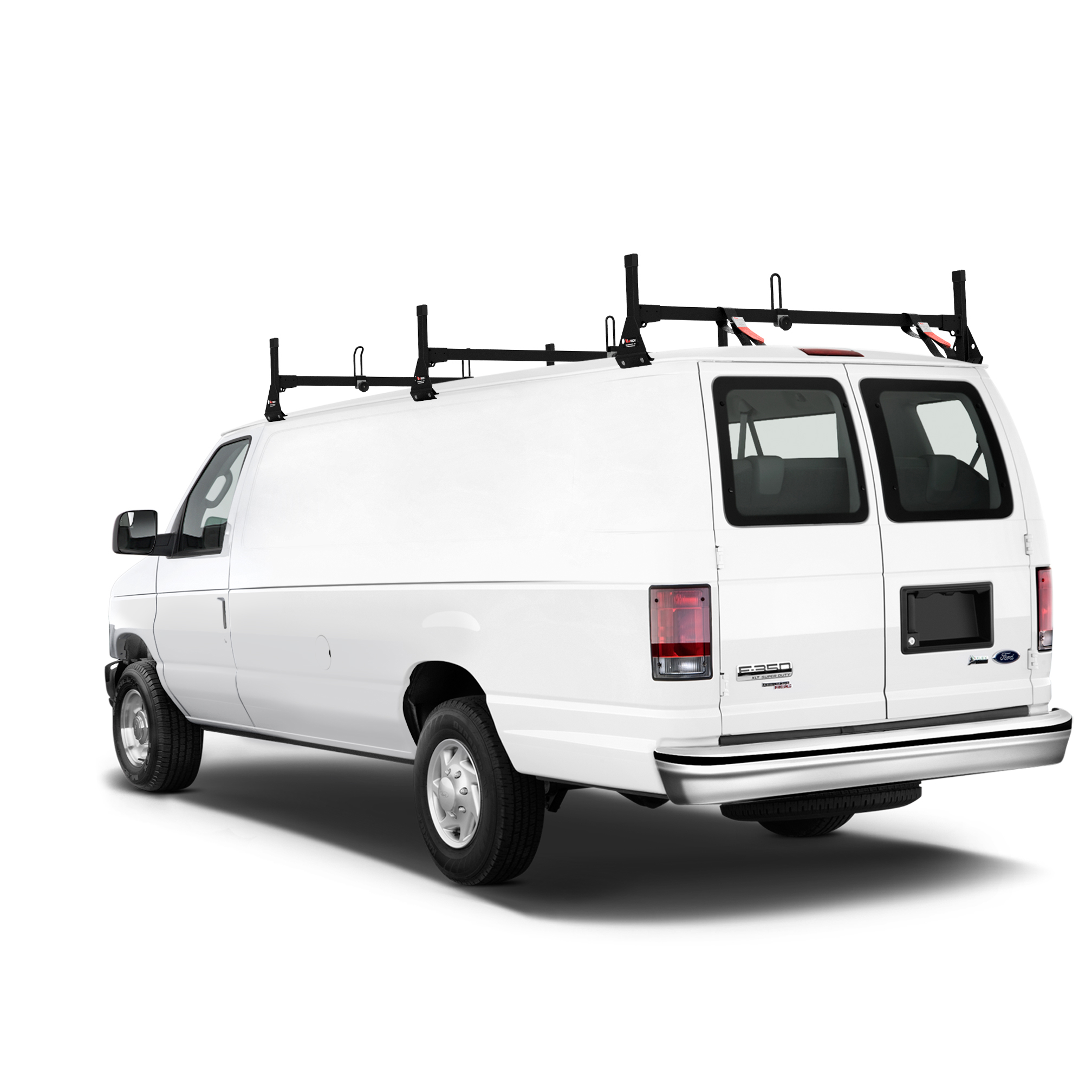

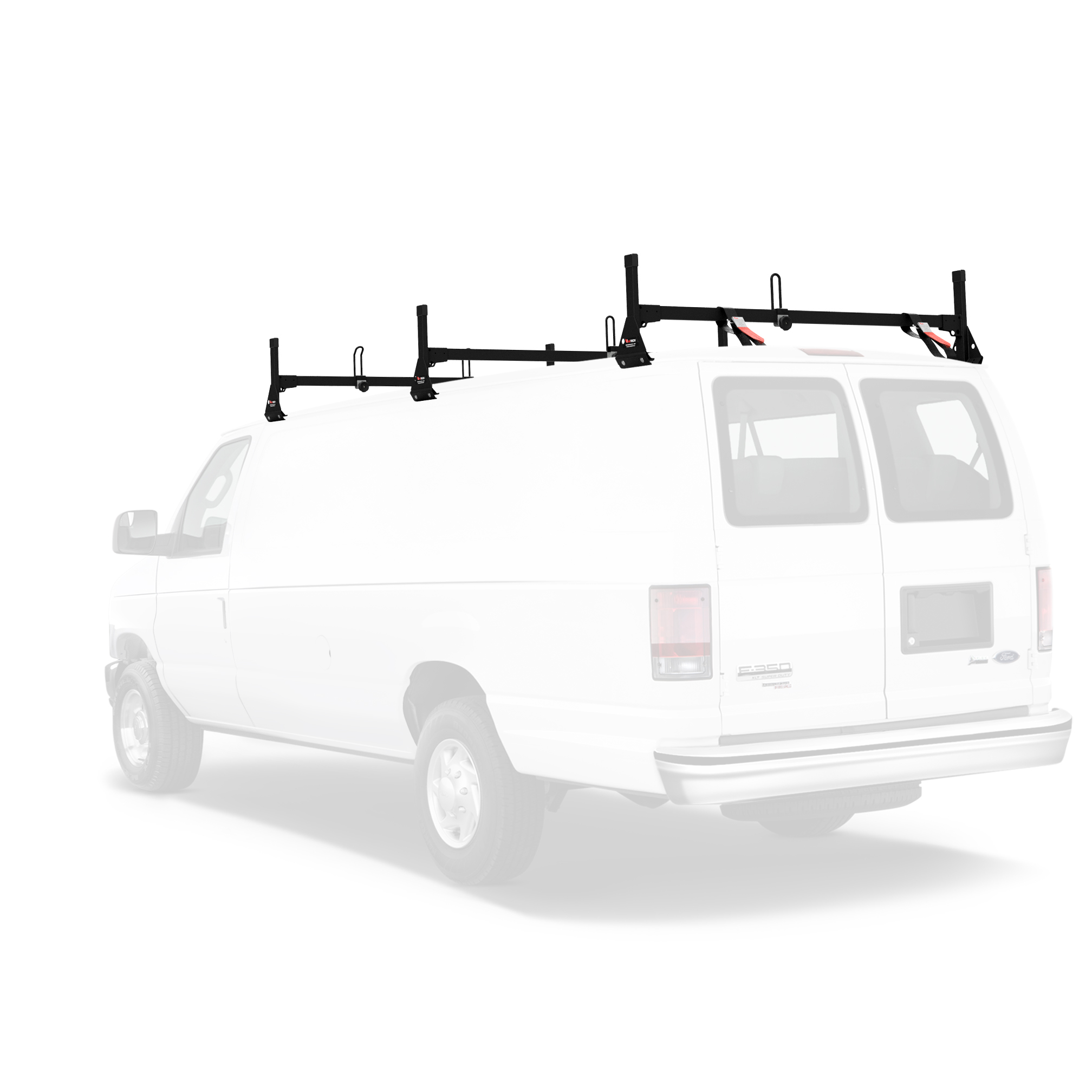

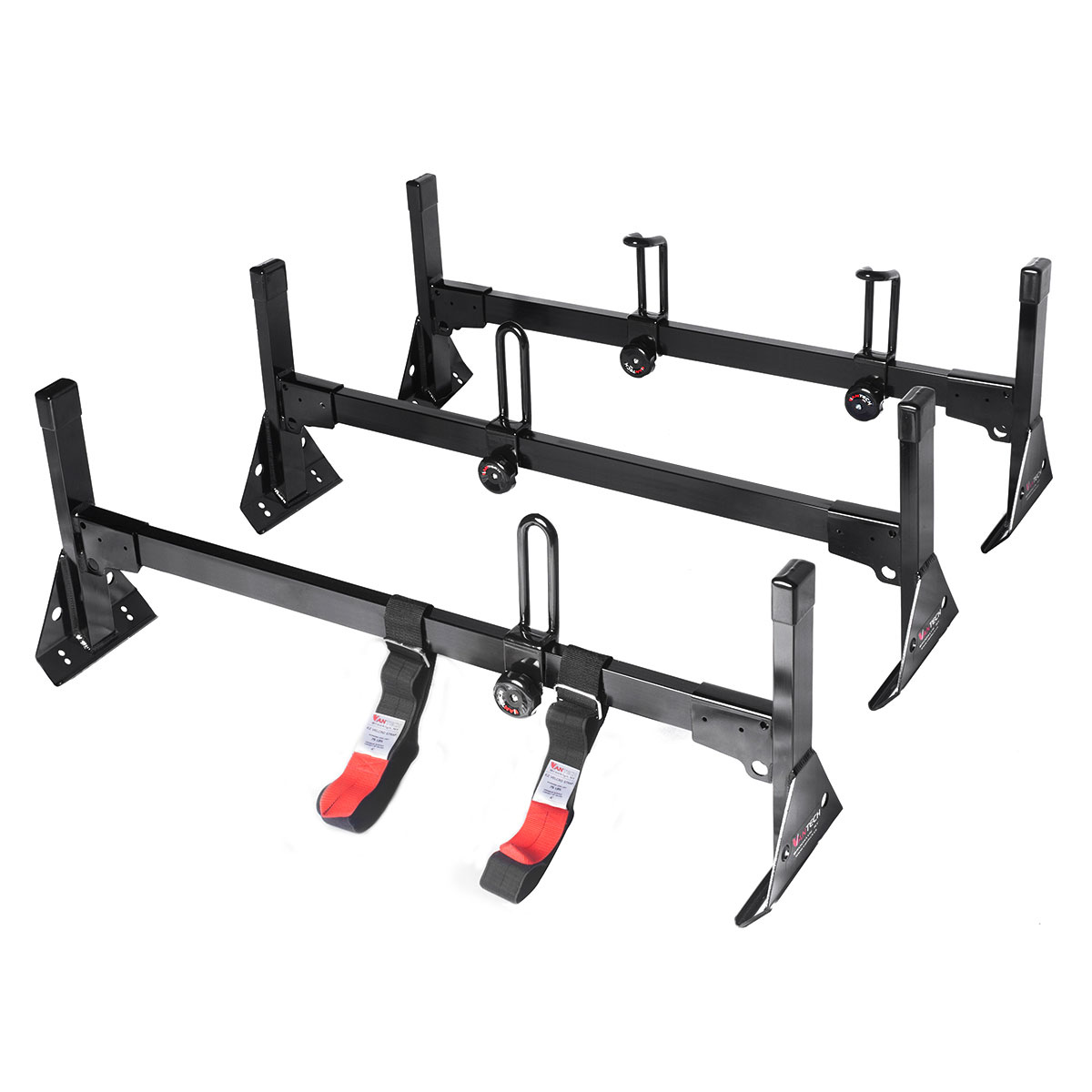

Our H1 Rack System offers a fast, simple, and rugged solution to your cargo needs. Designed to mount directly onto OEM mounting points, you don’t need to worry about drilling new holes or fitment issues. The H1 fits all wheelbases, and transforms any roof into a loading area. Our 10” low-profile mounting bases ensure minimal wind noise, while providing enough clearance for most roof-cargo. Included with the H1 is a ladder guide and stopper to ensure proper ladder and cargo retention. The H1 system comes in a variety of configurations to fit your needs; it is available in a set of 2 or 3 bars, steel or aluminum, and in black or white. Each cross bar has a load capacity of 250 lbs. (evenly distributed). We also offer a cargo roller bundle to help save your back, roof line and your time!

Please Select material
Aluminum
Steel
Please Select system
2 Bar System
3 Bar System
2 Bar System w/ Roller
3 Bar System w/ Roller
Please Select Color
Black
White
Price Per Item
$469.00
Have a Dealer account? Access Vantech b2b >
About H1 Ladder Rack System for GMC Savana 1996-On

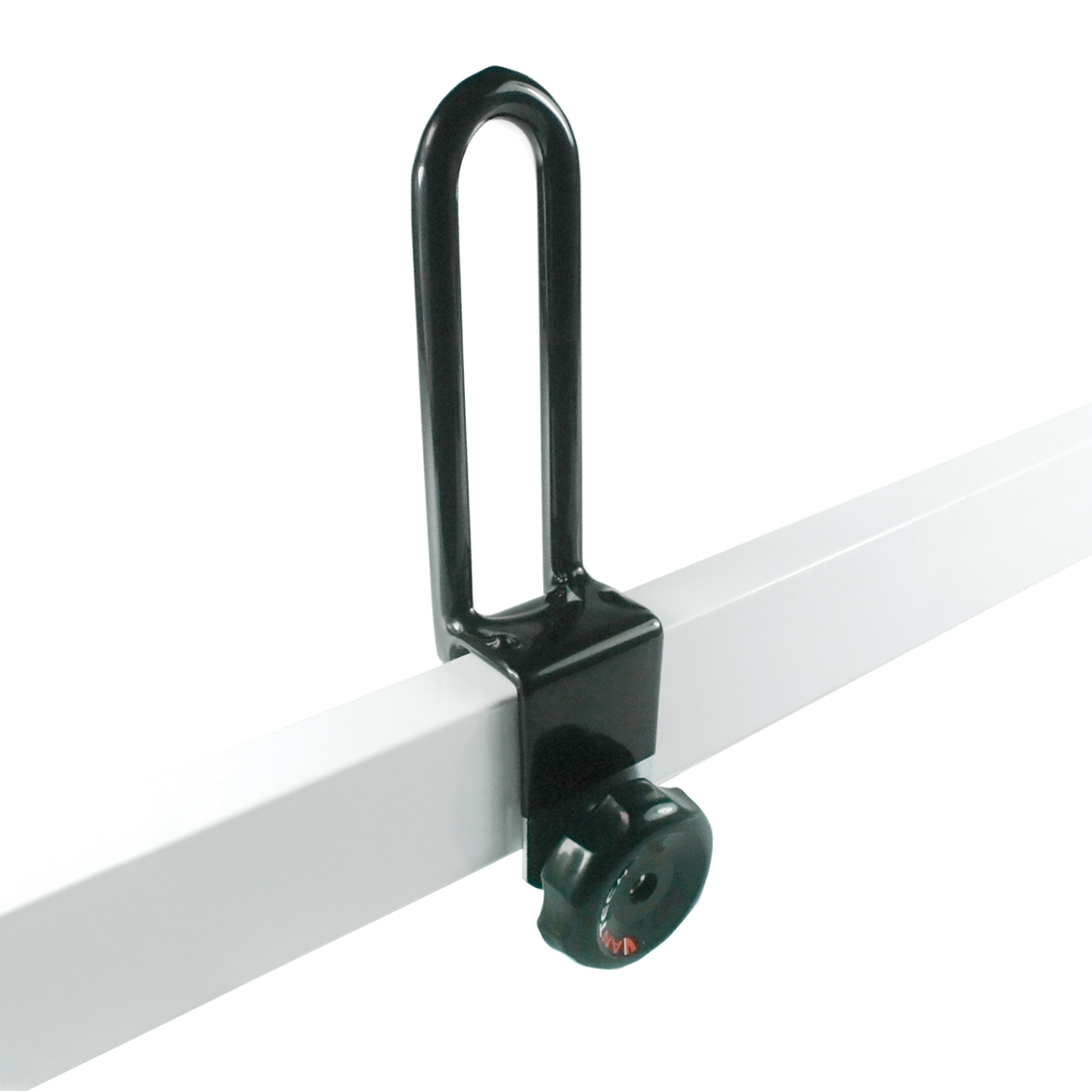

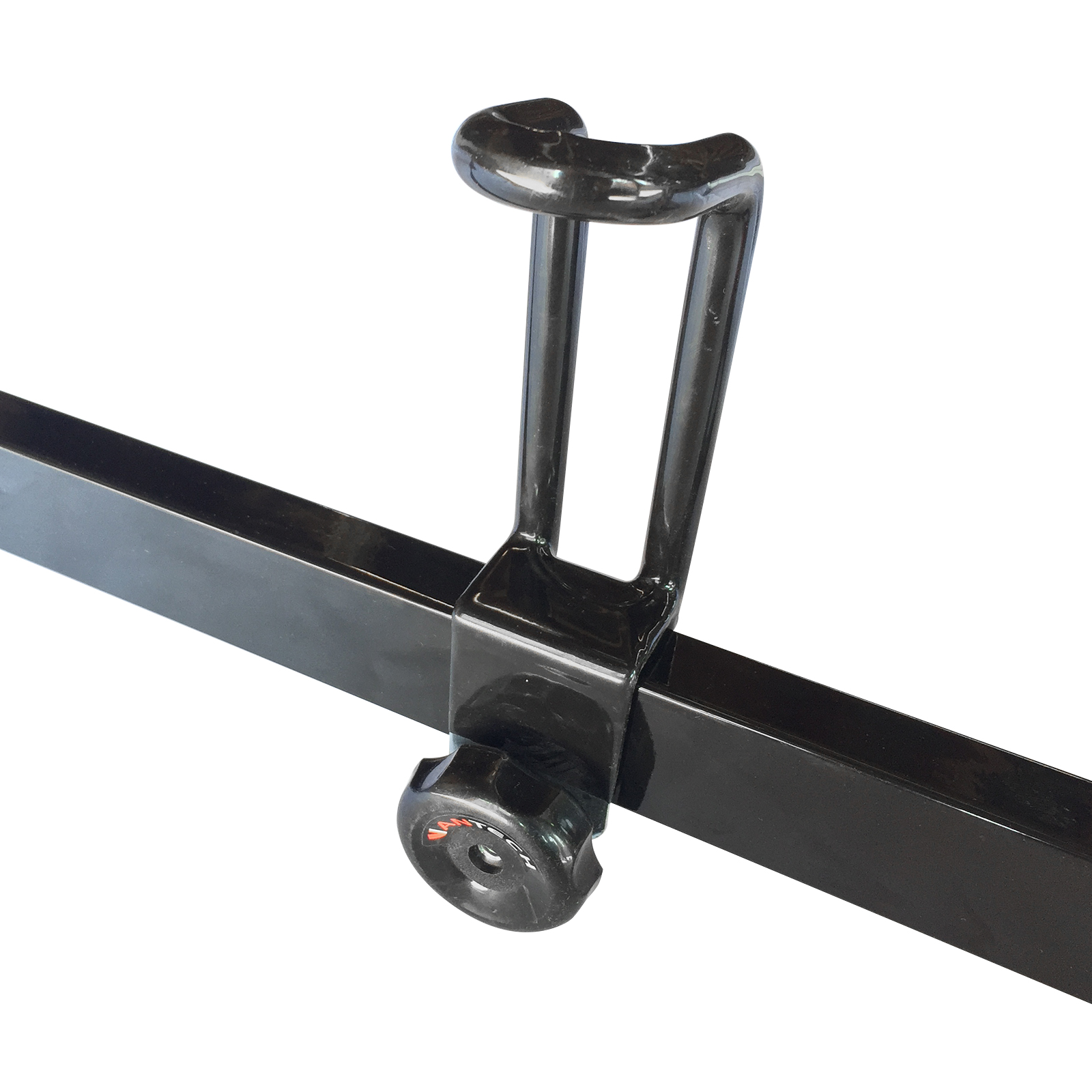

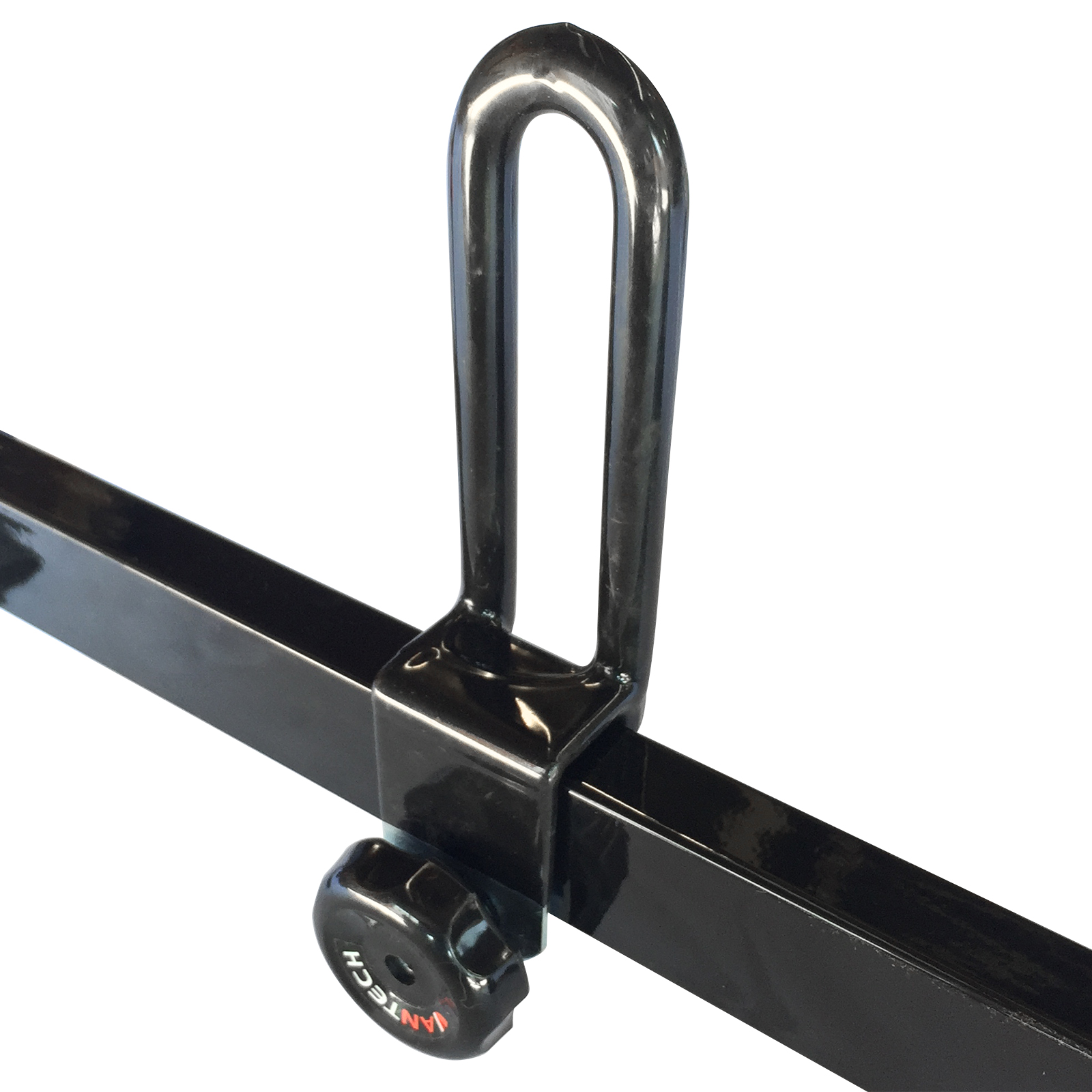

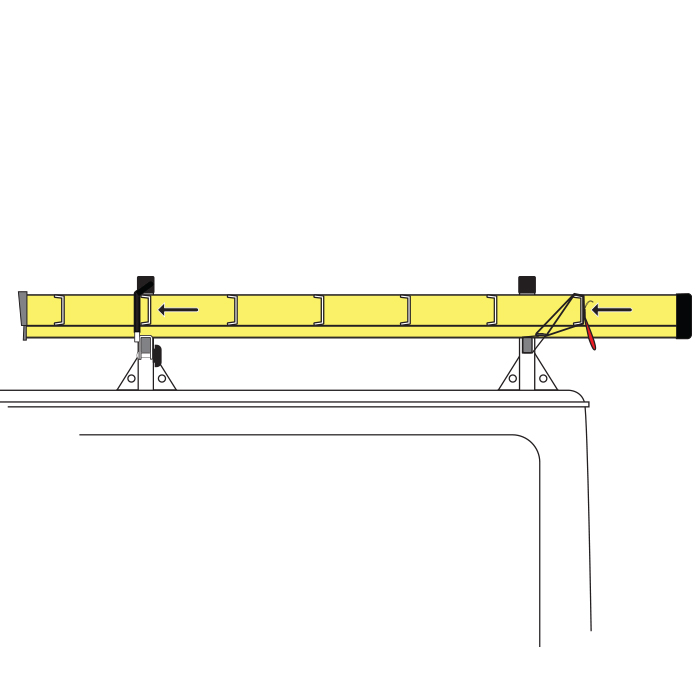

The Vantech 2 bar H1 Aluminum System can hold up 500 lbs. evenly distributed. Each cross bar can hold 250 lbs. Each mounting base is made from 4mm thick 6061 aircraft grade aluminum. The Cross bar is protected by rubber bar guard on top. The aluminum mounting upright is approx. 1/8" thick at the base. The Mounting uprights have an 8" extra wide footprint. The height of the mounting upright stands at 16.5" total height. The Triangular base plate is welded complete onto upright post for complete seal. There are 4X 3/4" eyehook on each upright mounts. No drilling required for installation. This system comes with drip rail clamps to install onto the vehicle's drip rails. The drip rail clamps are 11 gauge steel 2" X 8" dipped in rubber top and bottom. Rubber cap on the upright post prevents wind noise and prevent water from entering system. The accessories included are 2X non-slip rubber bar guard to protect the top surface of cross bars from wear and tear. 1X ladder stopper (5" tall) to prevent ladder from sliding forward, Ladder stoppers are galvanized then rubber dipped. 1X ladder guide (5.5" tall) for easy bungee and tie-down. Ladder guide & Ladder stoppers are galvanized then rubber dipped. Easy turn knob allows quick adjustments and removal or adjustment of ladder stopper and ladder guide. 1X hook & loop strap to secure ladders up to 75 lbs. quickly. This system is powder coated white.

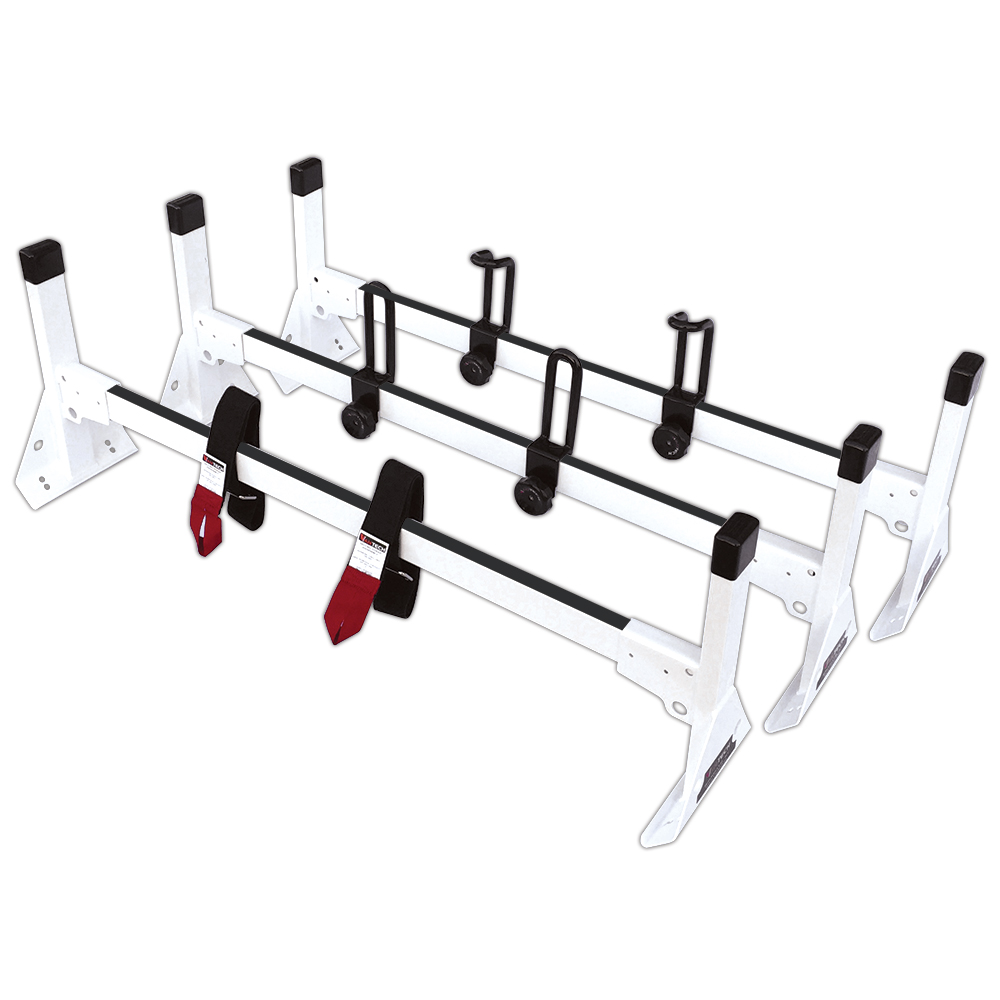

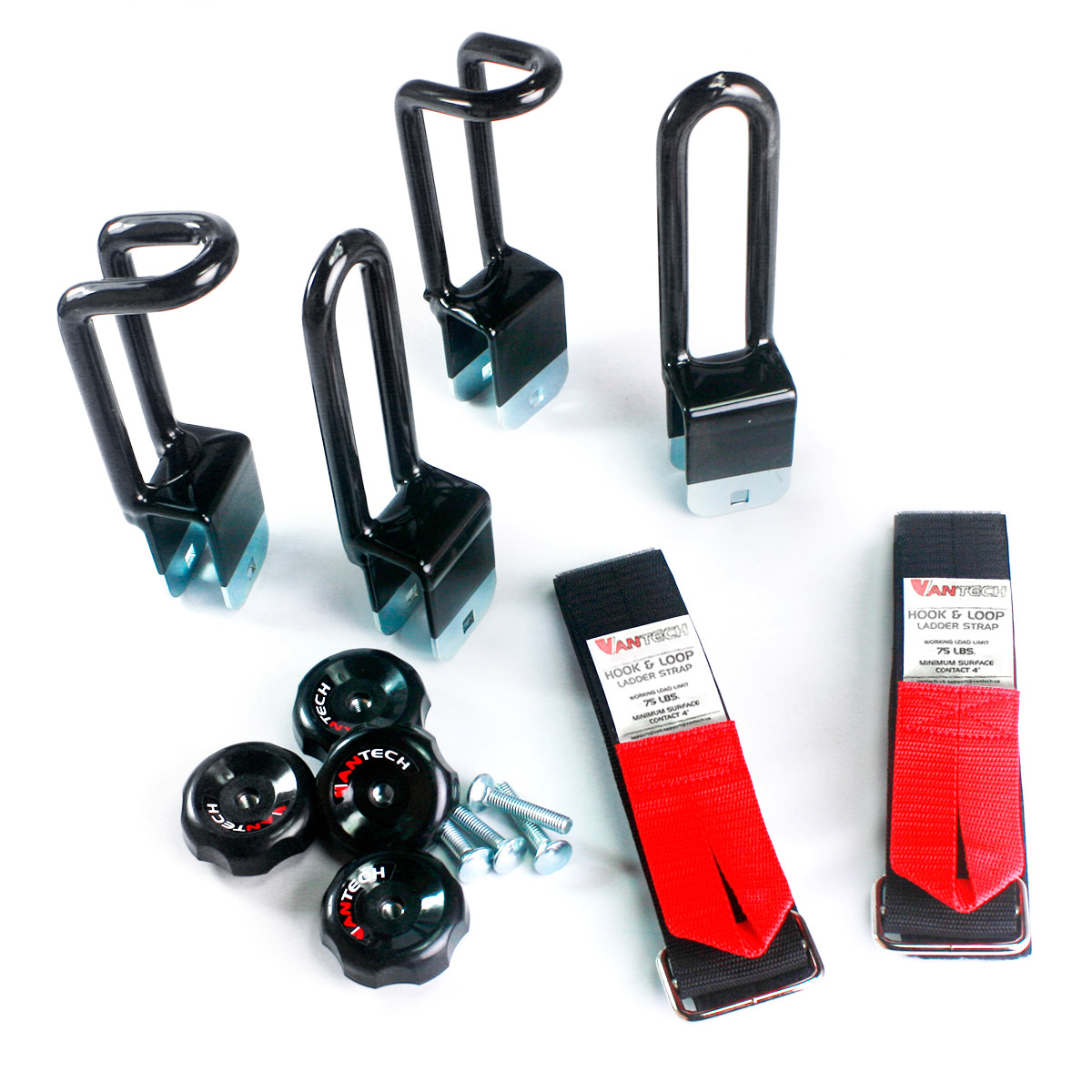

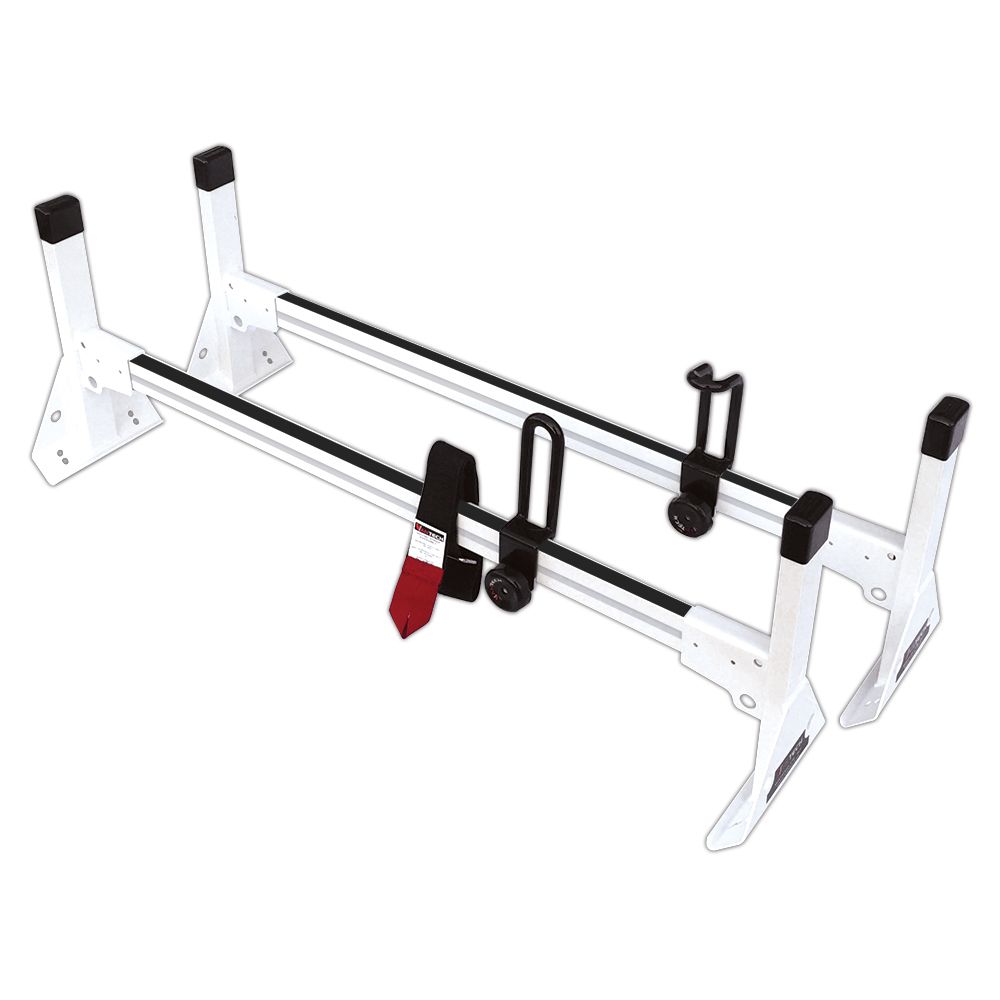

4x Mounting Bases
2x A613 Crossbars

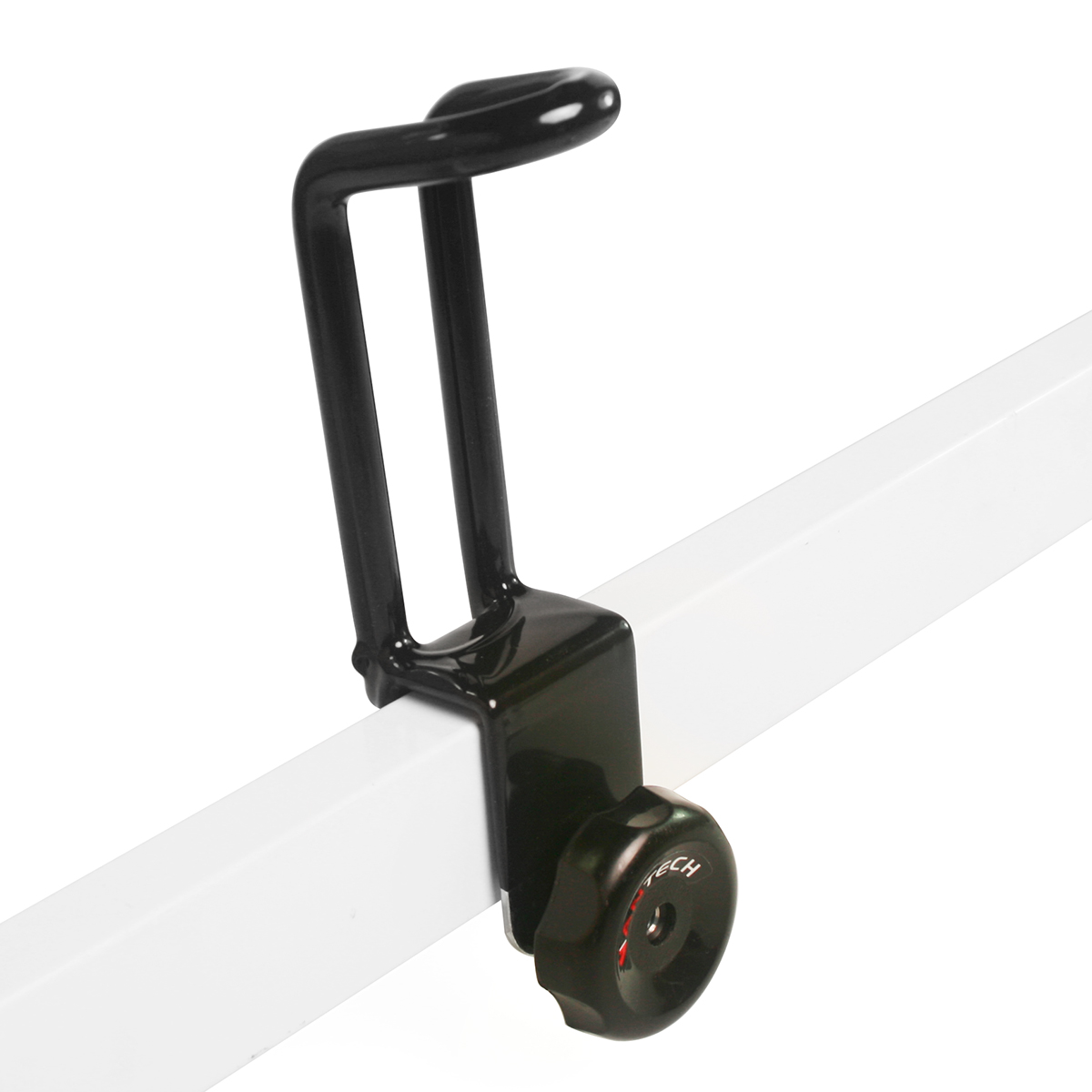

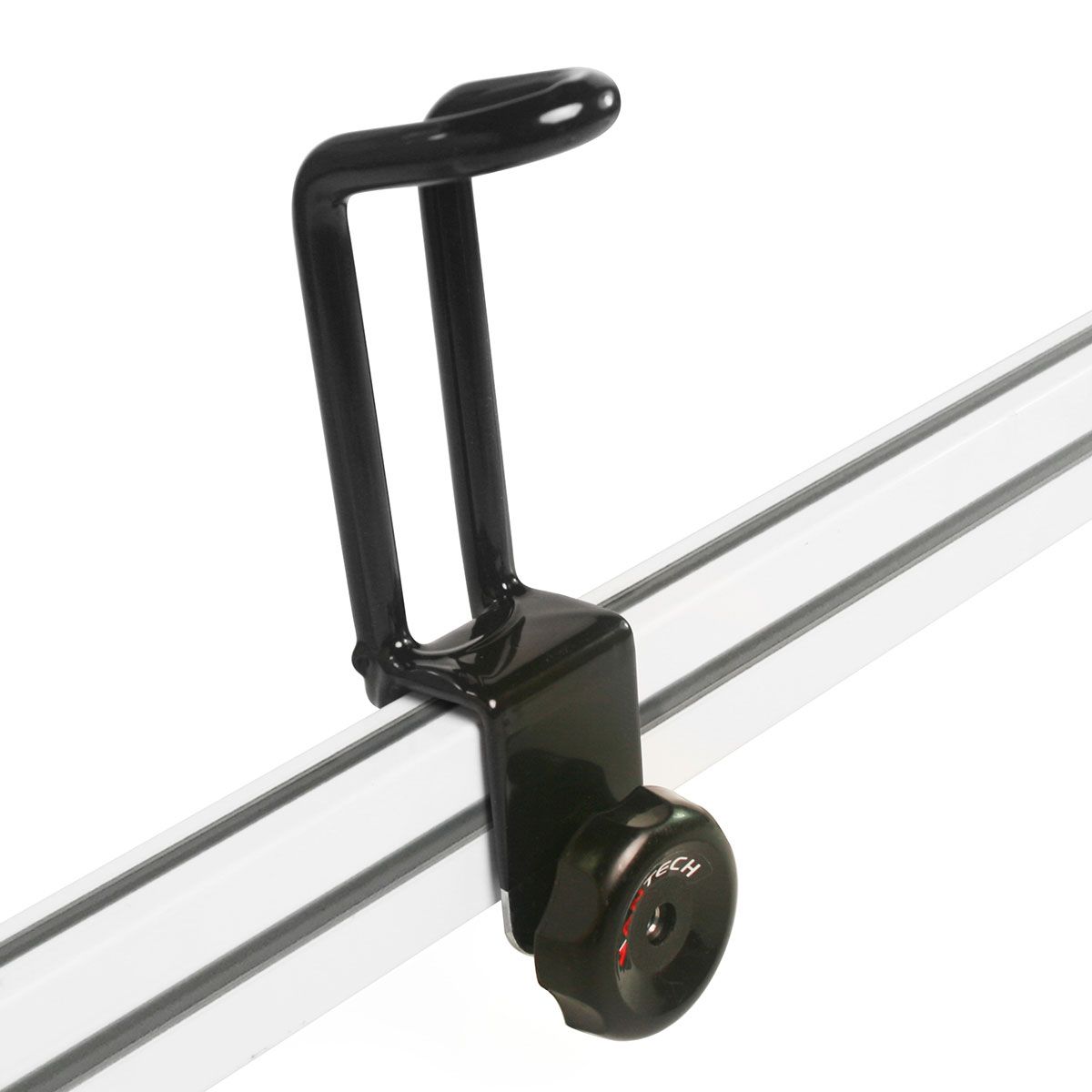

1x A06 Ladder Stopper

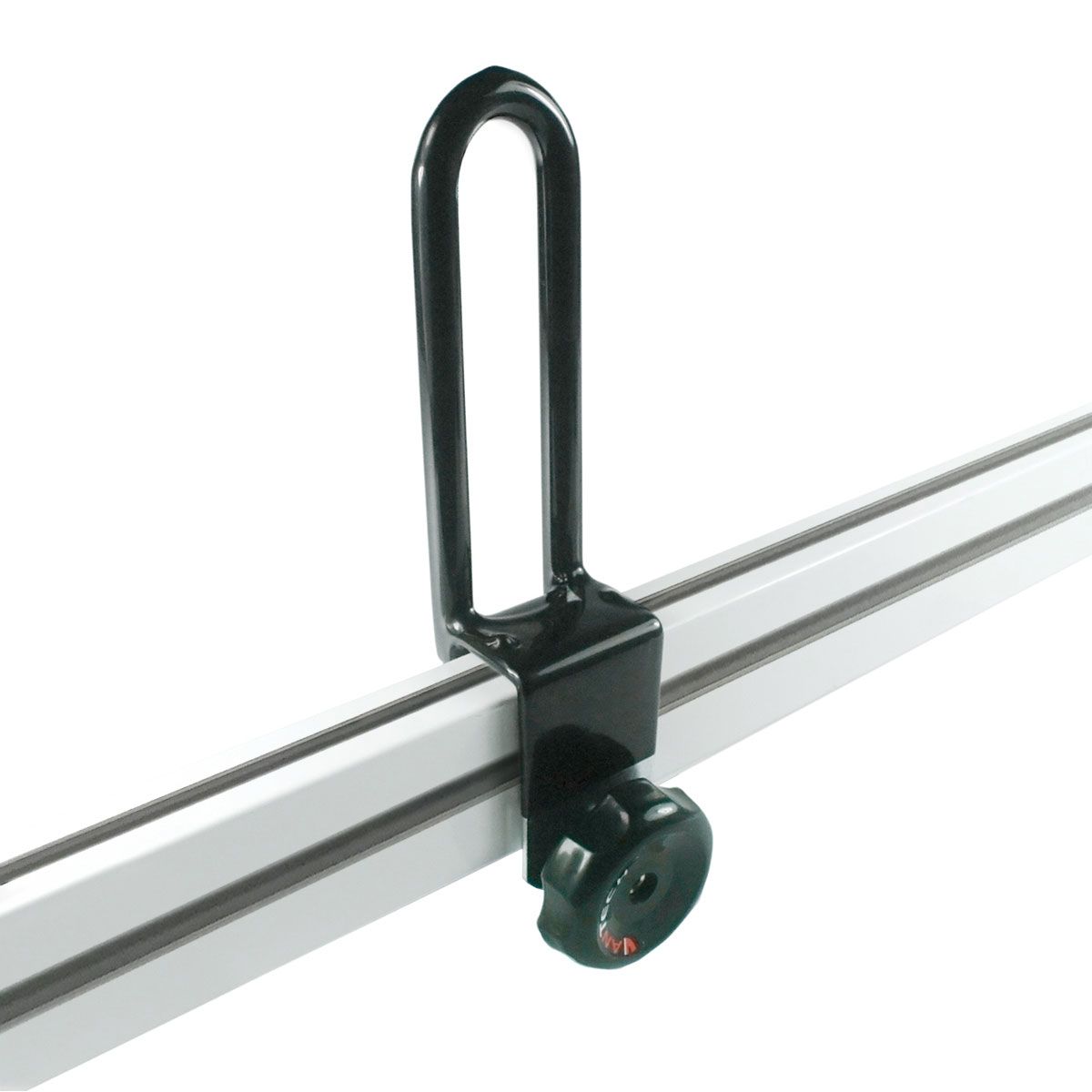

1x A02 Ladder Guide

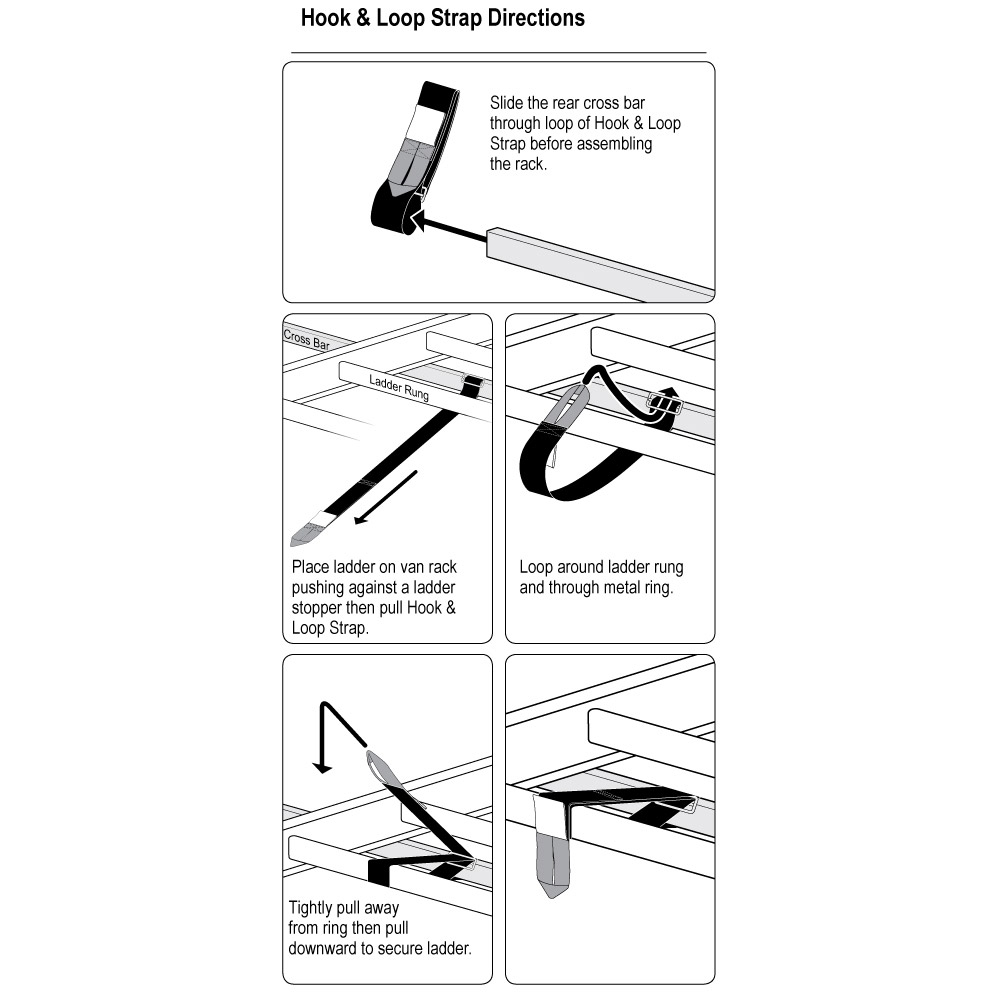

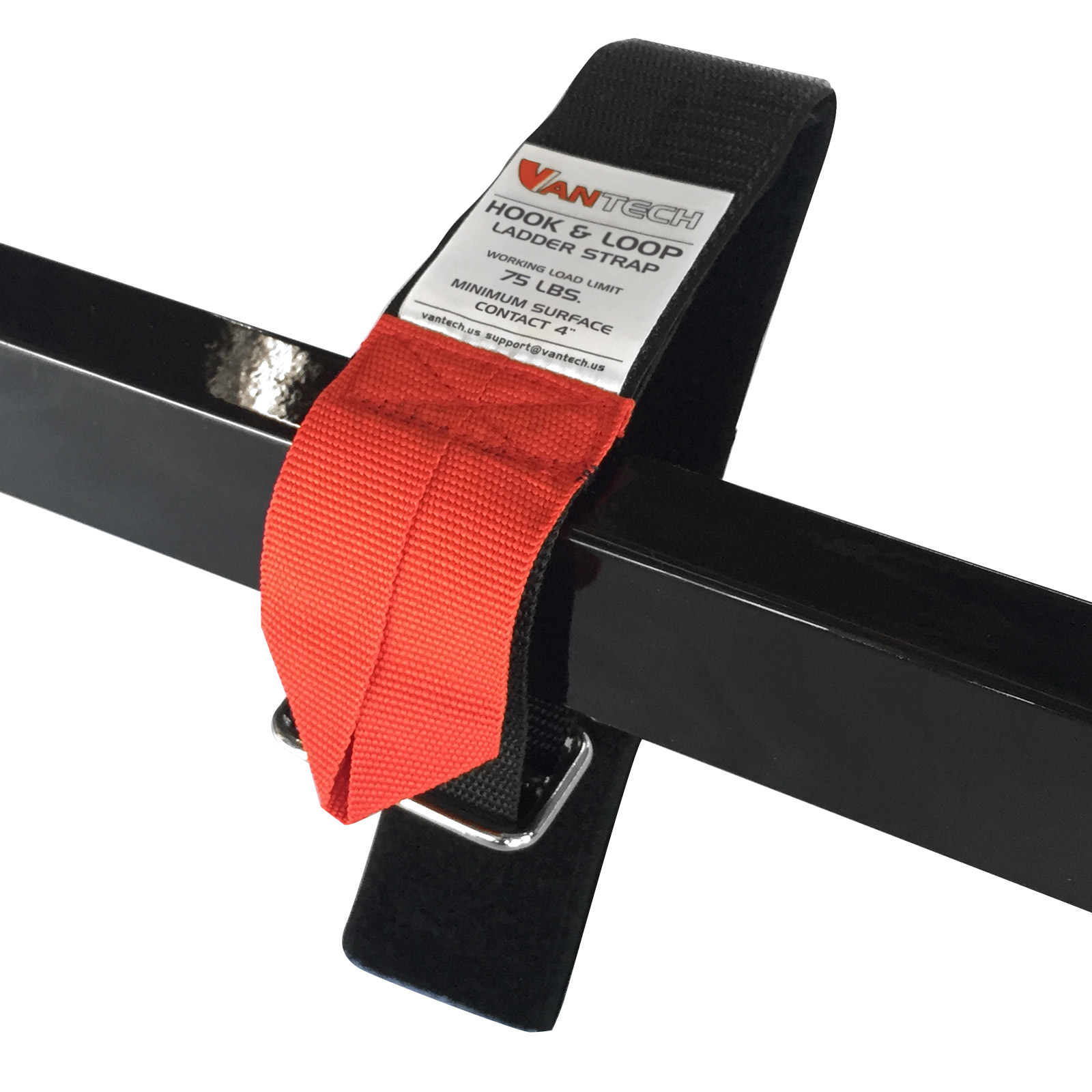

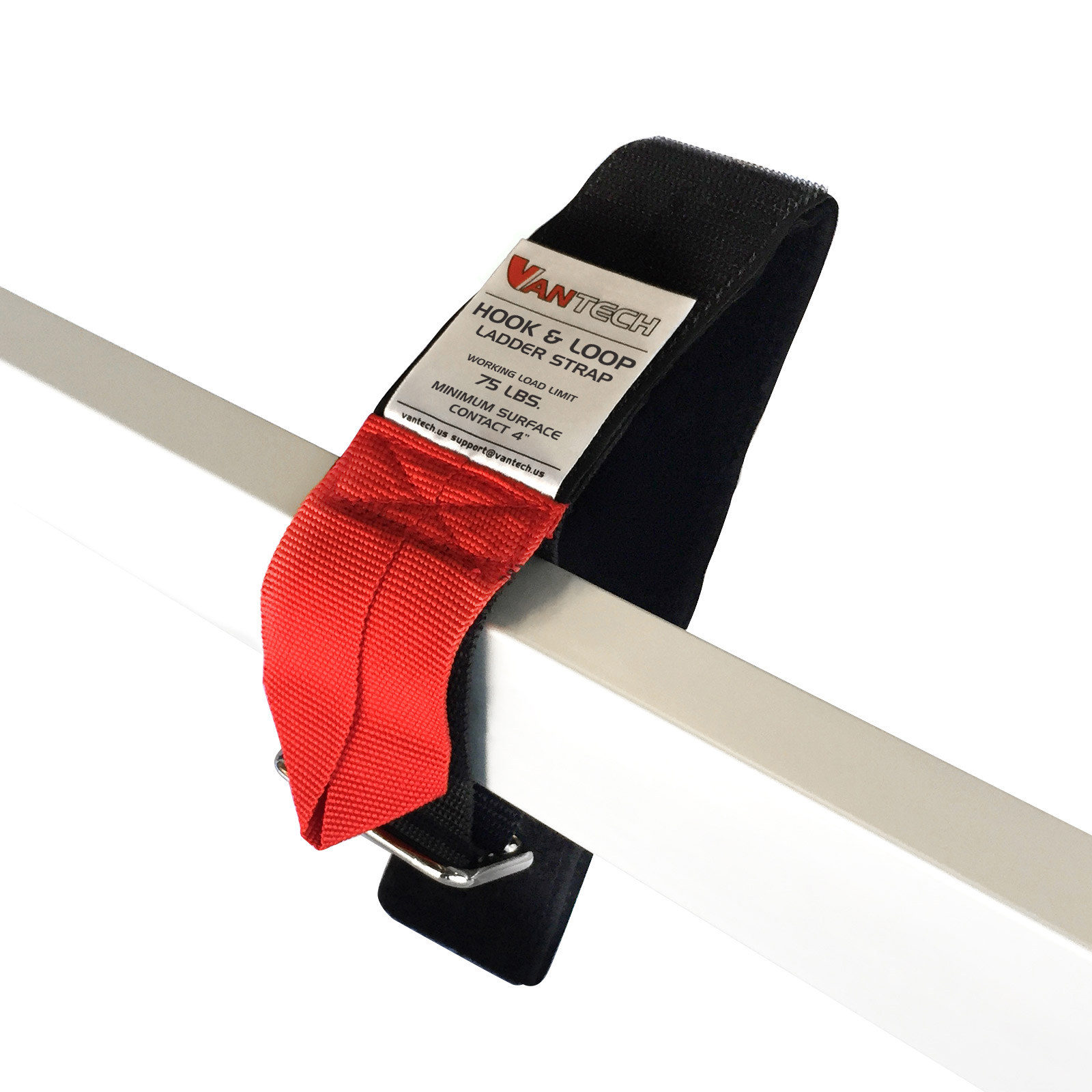

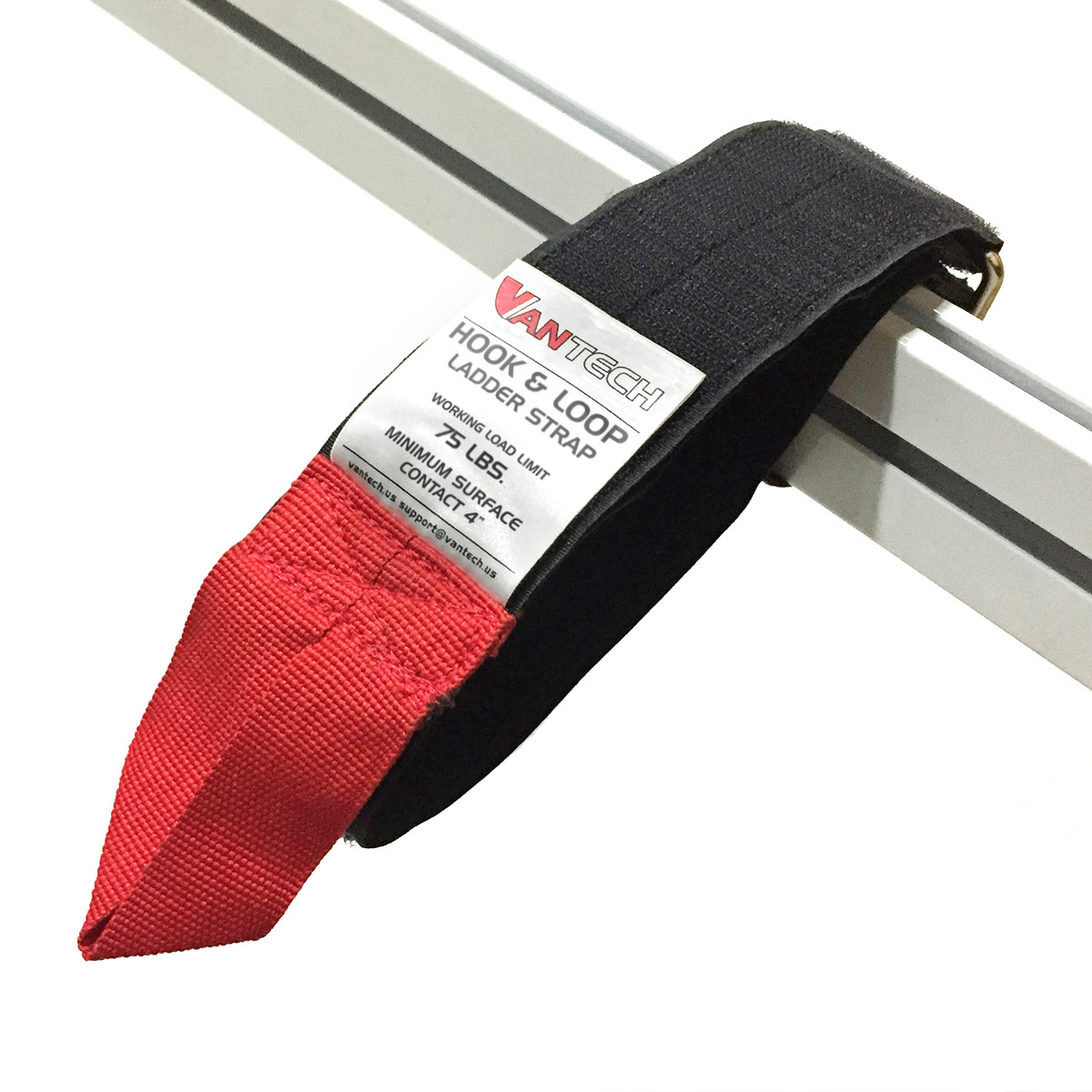

1x A69 Hook & Loop strap
2x Bar Guards
Hardware kit
Load capacity 500 lbs. (evenly distributed)
Aluminum systems are powder coated for extra protection and clamps onto existing factory drip rails. Load capacity 500 lbs. (evenly distributed)
